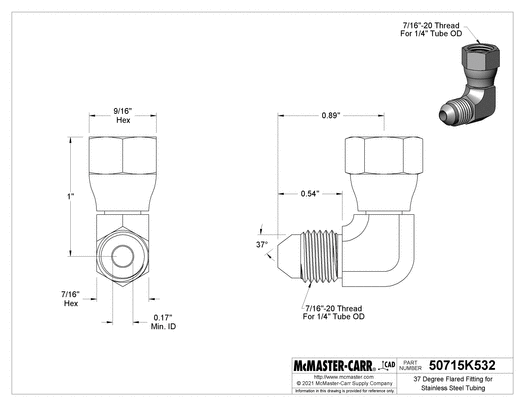

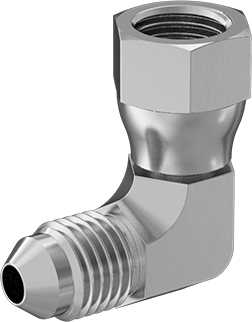

McMaster 50715K532 37 Degree Flared Fitting for Stainless Steel Tubing 90 Degree Swivel Adapter for 1/4" OD Tube x Female Tube

McMaster 50715K532 37 Degree Flared Fitting for Stainless Steel Tubing 90 Degree Swivel Adapter for 1/4" OD Tube x Female Tube

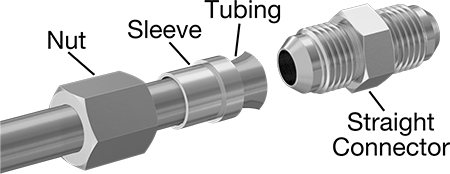

Also known as JIC (Joint Industrial Council) fittings, these provide a tight metal-to-metal seal on tubing that is flared to 37°. They withstand high pressure, so they’re often used in hydraulic applications. Made from 316 stainless steel, they resist corrosion from water and chemicals. A complete fitting requires a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.

Fittings that swivel until tightened have a built-in nut that rotates 360° for easy installation.

Fittings with female tube end have an internal flare that mates with the male tube end of another fitting.
