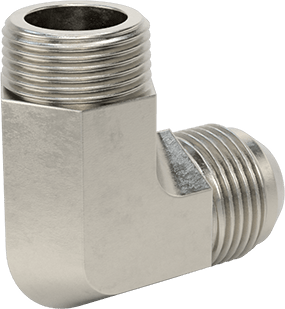

McMaster 50715K187 37 Degree Flared Fitting for Stainless Steel Tubing 90 Degree Adapter for 3/4" Tube OD x 3/4 NPT Male

Name: McMaster 50715K187 37 Degree Flared Fitting for Stainless Steel Tubing 90 Degree Adapter for 3/4" Tube OD x 3/4 NPT Male
Brand: McMaster-Carr
SKU: KV50715K187
Price: 164.73 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7307.22.5000

Country of Origin: United States | Shipping Weight: 0.45 lbs

$164.73 - $164.73

$164.73

$164.73 - $164.73

$164.73

Quantity

McMaster 50715K187 37 Degree Flared Fitting for Stainless Steel Tubing 90 Degree Adapter for 3/4" Tube OD x 3/4 NPT Male

Shape	90° Elbow
Type	Adapter
Tube Connection
Connection Style	37° Flared
Flared Connection Type	Standard
Gender	Male
Thread Type	UN/UNF (JIC)
Thread Size	1 1/16"-12
Dash Size	12
For Tube OD	3/4"
Pipe Connection
Connection Style	Threaded
Gender	Male
Thread Type	NPT
Dash Size	12
Pipe Size	3/4
For Use With	Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, Water
Material	316 Stainless Steel
Maximum Pressure	4,000 psi @ 72° F
Temperature Range	-420° to 1200° F
For Tube Material	304 Stainless Steel, 316 Stainless Steel
For Tube Specifications Met	ASTM A213, ASTM A249, ASTM A269
For Tube Fabrication	Seamless, Welded
Specifications Met	ISO 8434, SAE J514
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	United States
USMCA Qualifying	No
Schedule B	730722.5000
ECCN	2B999
