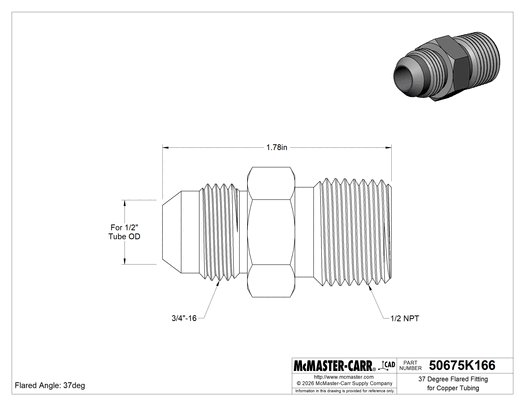

McMaster 50675K166 37 Degree Flared Fitting for Copper Tubing Adapter for 1/2" Tube OD x 1/2 NPT Male

McMaster 50675K166 37 Degree Flared Fitting for Copper Tubing Adapter for 1/2" Tube OD x 1/2 NPT Male

UPC: | Harmonization / Schedule B : 7412.20.0000

Country of Origin: United States | Shipping Weight: 0.15 lbs

$41.65 - $41.65
$41.65
$41.65 - $41.65
$41.65

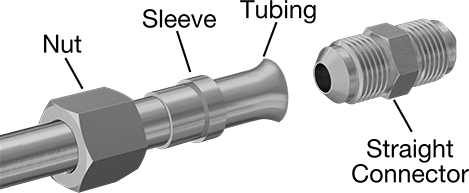

Also known as JIC (Joint Industrial Council) fittings, these provide a tight metal-to-metal seal on tubing that is flared to 37°. They can handle higher pressures than 45° flared fittings. Fittings are brass for good corrosion resistance. They require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.

Shape Straight
Type Adapter
For Use With Air, Fuel Oil, Mineral Oil, Water
Tube Connection
Connection Style Flared
Flared Angle 37°
Flared Connection Type Standard
Gender (Tube Side) Male
Thread Size 3/4"-16
Thread Type UN/UNF (JIC)
For Tube OD 1/2"
Pipe Connection
Connection Style Threaded
Gender (Pipe Side) Male
Thread Type NPT
Pipe Size 1/2
Material 360 Brass
Maximum Pressure 3,200 psi @ 72° F
Temperature Range -40° to 400° F
Length 1 25/32"
For Tube Material Copper
For Tube Fabrication Seamless
Specifications Met ISO 8434, MIL-F-18866, SAE J514
RoHS RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy
REACH Not Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin United States
USMCA Qualifying Yes
Schedule B 741220.0000
ECCN EAR99
