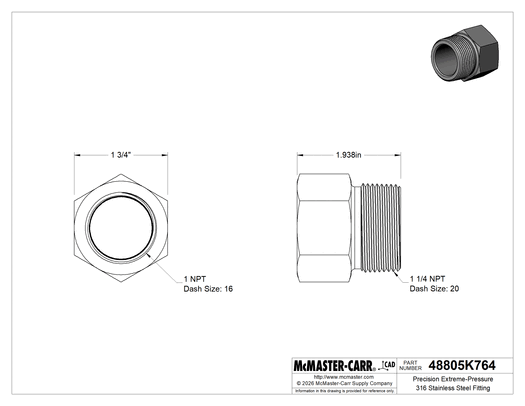

McMaster 48805K764 Precision Extreme-Pressure 316 Stainless Steel Fitting Bushing Reducing Adapter, 1-1/4 Male x 1 Female NPT

McMaster 48805K764 Precision Extreme-Pressure 316 Stainless Steel Fitting Bushing Reducing Adapter, 1-1/4 Male x 1 Female NPT

UPC: | Harmonization / Schedule B : 7307.22.5000

Country of Origin: Israel | Shipping Weight: 0.97 lbs

$143.50 - $143.50
$143.50
$143.50 - $143.50
$143.50

Made to tighter tolerances than other stainless steel pipe fittings, these are also known as instrumentation fittings. The male threads are rolled for extra strength in extreme-pressure applications. Fittings are commonly used to connect equipment in gas and hydraulic fluid lines. They are 316 stainless steel for excellent corrosion resistance.

For Use With Hydraulic Fluid, Liquid Nitrogen, Natural Gas, Steam, Water
Shape Straight
Type Reducing Adapter, Bushing
Body Shape Hex
Material 316 Stainless Steel
Fabrication Machined
Thread Fabrication Rolled
Connection Type Pipe
Connection Style Threaded
Connection NPT Male × NPT Female
Pipe Size (A) 1 1/4
Pipe Size (B) 1
Dash Size (A) 20
Dash Size (B) 16
Length 1 15/16"
Hex Width 1 3/4"
Maximum Pressure 4,400 psi @ 72° F
Maximum Steam Pressure 4,400 psi @ 300° F
Specifications Met ASME B1.20.1, ASME B31.1, ASME B31.3
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin Israel
Schedule B 730722.5000
ECCN 2B999
