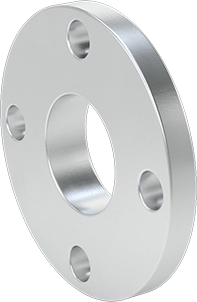

McMaster 44705K364 Aluminum Unthreaded Slip-on Weld Flange 2 Pipe Size

McMaster 44705K364 Aluminum Unthreaded Slip-on Weld Flange 2 Pipe Size

UPC: | Harmonization / Schedule B : 7609.00.0000

Country of Origin: United States | Shipping Weight: 3.307 lbs

$116.69 - $116.69
$116.69
$116.69 - $116.69
$116.69

Also known as Pressure Class 125 flanges, these are for use in low-pressure applications. Bolt two same-size flanges together with a gasket (sold separately) to create an access point within a line. Flanges are aluminum, which is lightweight with good corrosion resistance.

Slip-on weld flanges have no internal stop; slide a pipe through the flange and weld on both sides.

For Use With Air, Oil, Water
Shape Straight
Type Flange, Adapter
Pressure Class 125
Connection Type Pipe
Connection Style Slip-On Weld × Flanged
Flanged Connection Surface Flat
Gender Female
Pipe Size 2

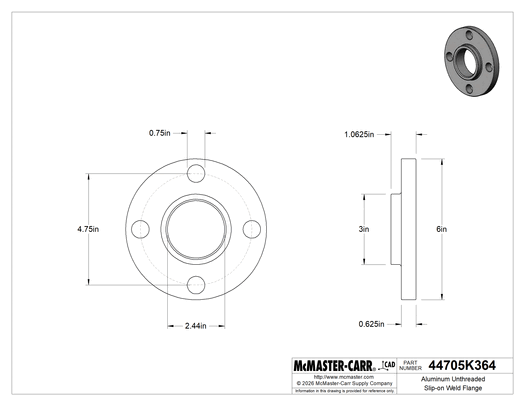

Flange OD 6"
For Bolt Diameter 5/8"
Bolt Hole Diameter 3/4"
Number of Bolts 4
Bolt Circle Diameter 4 3/4"
Maximum Pressure 150 psi @ 72° F
Material 356 Aluminum
For Fitting Schedule 40
For Fitting Material Aluminum
For Pipe Schedule 40
For Pipe Material Aluminum
Specifications Met ASME B16.1
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin United States
USMCA Qualifying Yes
Schedule B 760900.0000
ECCN EAR99
