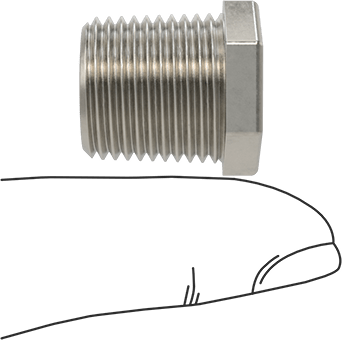

McMaster 4464K262 Hex Bushing 304 Stainless Steel, 3/8 in x 1/8 in Fitting Pipe Size, Male NPT x Female NPT

Name: McMaster 4464K262 Hex Bushing 304 Stainless Steel, 3/8 in x 1/8 in Fitting Pipe Size, Male NPT x Female NPT
Brand: McMaster-Carr
SKU: KV4464K262
Price: 31.3 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7307.29.0000

Country of Origin: China | Shipping Weight: 0.04 lbs

$31.30 - $31.30

$31.30

$31.30 - $31.30

$31.30

Quantity

Use these fittings in a low-pressure pipe line.

Fittings that meet ANSI/MSS SP-114 adhere to high-quality standards for heat treating, material thickness, and marking.

304 stainless steel fittings have very good corrosion resistance.

For Use With	Air, Natural Gas, Oil, Steam, Water
Shape	Straight
Type	Reducing Adapter, Bushing
Body Shape	Hex
Material	304 Stainless Steel
Pressure Class	150
Fabrication	Heat Treated
Connection Type	Pipe
Connection Style	Threaded
Connection	NPT Male × NPT Female

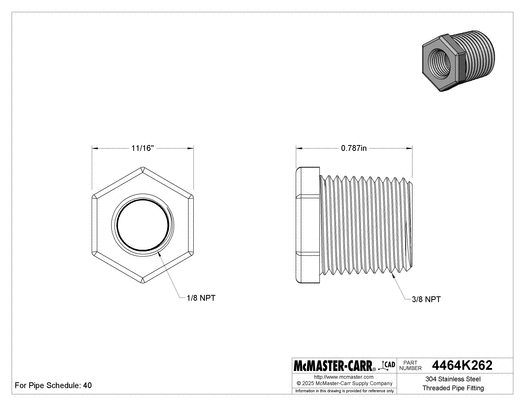

Pipe Size
(A)	3/8
(B)	1/8
Length	25/32"
Hex Width	11/16"
For Pipe
Schedule	40
Material	304 Stainless Steel, 304/304L Stainless Steel
For Flange
Class	150
Material	304 Stainless Steel, 304/304L Stainless Steel
Specifications Met	ANSI/MSS SP-114, ASTM A351
System of Measurement	Inch
Maximum Steam Pressure	150 psi @ 350° F
Maximum Pressure	300 psi @ 72° F
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	Peoples Republic of China or Vietnam
Schedule B	730729.0000
ECCN	2B999
