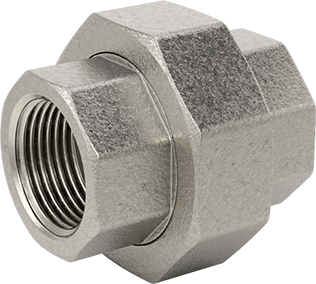

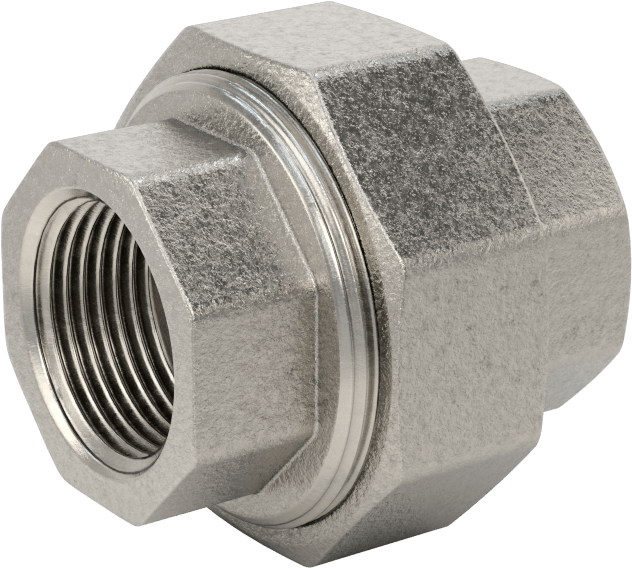

McMaster 4452K226 316 Stainless Steel Threaded Pipe Fitting Low-Pressure, Union Straight Connector, 3/4 NPT Female

McMaster 4452K226 316 Stainless Steel Threaded Pipe Fitting Low-Pressure, Union Straight Connector, 3/4 NPT Female

UPC: | Harmonization / Schedule B : 7307.29.0000

Country of Origin: China or Vietnam | Shipping Weight: 0.25 lbs

$61.16 - $61.16
$61.16
$61.16 - $61.16
$61.16

Use these fittings in a low-pressure pipe line.

Fittings that meet ANSI/MSS SP-114 adhere to high-quality standards for heat treating, material thickness, and marking.

316 stainless steel fittings have excellent corrosion resistance.

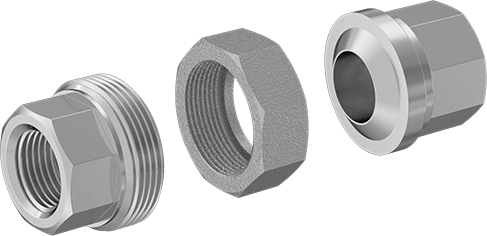

Union connectors separate into three pieces so you can access your line without unthreading pipe connections.

For Use With Air, Natural Gas, Oil, Steam, Water
Shape Straight
Type Connector, Union
Body Shape Octagon
Material 316 Stainless Steel
Pressure Class 150
Fabrication Heat Treated
Connection Type Pipe
Connection Style Threaded
Connection NPT Female
Pipe Size 3/4

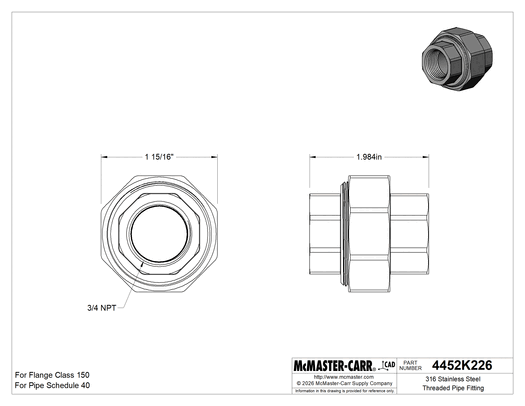

Length 1 63/64"
Hex Width 1 15/16"
For Pipe – Schedule 40
For Pipe – Material 316 Stainless Steel, 316/316L Stainless Steel
For Flange – Class 150
For Flange – Material 316 Stainless Steel, 316/316L Stainless Steel
Specifications Met ANSI/MSS SP-114, ASTM A351
System of Measurement Inch
Maximum Steam Pressure 150 psi @ 350° F
Maximum Pressure 300 psi @ 72° F
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin Peoples Republic of China or Vietnam
Schedule B 730729.0000
ECCN 2B999
