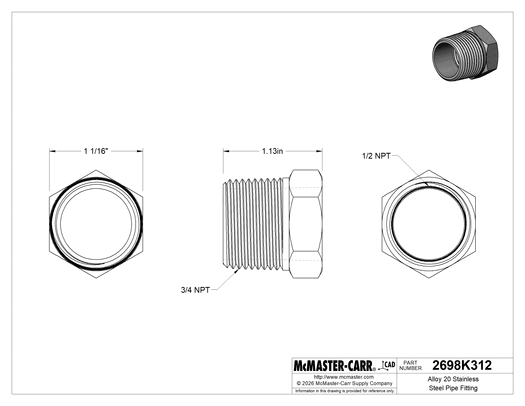

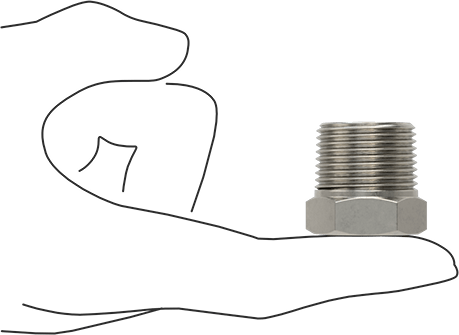

McMaster 2698K312 Alloy 20 Stainless Steel Pipe Fitting Medium-Pressure, Bushing Adapter, 3/4 Male x 1/2 Female

McMaster 2698K312 Alloy 20 Stainless Steel Pipe Fitting Medium-Pressure, Bushing Adapter, 3/4 Male x 1/2 Female

UPC: | Harmonization / Schedule B : 7307.29.0000

Country of Origin: United States | Shipping Weight: 0.12 lbs

$239.01 - $239.01
$239.01
$239.01 - $239.01
$239.01

Choose these fittings when you want the same high-quality found in our low-pressure pipe fittings, but need more strength to handle higher pressures.

316 stainless steel fittings have excellent corrosion resistance.

Alloy 20 stainless steel fittings have the best corrosion resistance of all the stainless steel fittings we offer. Alloy 20 stainless steel is also known as Carpenter 20 and resists cracking from stress and corrosion.

For Use With Air, Steam, Water
Shape Straight
Type Reducing Adapter, Bushing
Body Shape Hex
Material Alloy 20 Stainless Steel
Pressure Class Not Rated
Fabrication Annealed
Connection Type Pipe
Connection Style Threaded
Connection NPT Male × NPT Female
Pipe Size (A) 3/4
Pipe Size (B) 1/2
Length 1 1/8"
Hex Width 1 1/16"
For Pipe Schedule 40
Pipe Material Alloy 20 Stainless Steel
For Flange Class 150
Flange Material Alloy 20 Stainless Steel
Specifications Met ASME B16.9, ASTM B366
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin United States
USMCA Qualifying No
Schedule B 730729.0000
ECCN 2B999
