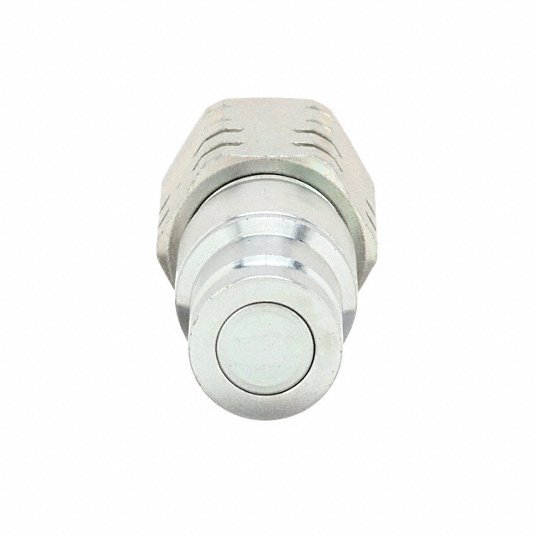

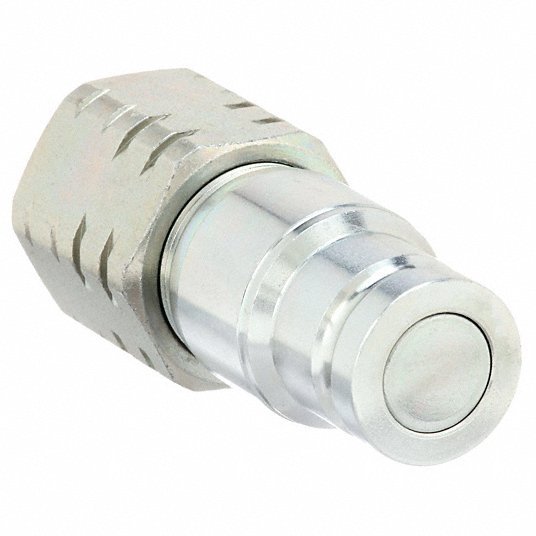

Eaton Hansen 10FFP37 Hydraulic Quick Connect Hose Coupling 3/8 in Coupling Size, Steel, 29 lpm Max. Flow Rate

Hydraulic Quick Connect Hose Coupling, Plug, FF Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 5,075 psi, Max. Flow Rate 29 lpm

Coupler Interchange Type	HTMA
Connection Type	NPT
Seal Material	Nitrile
Coupler Flow Rate	6.0 gpm
Max. Pressure	5075 psi
Coupler Body Material	Zinc Plated Steel
Sleeve Material	Zinc Plated Steel
Coupler Finish	Clear Chromate
Series	FF
Shut Off	Flat Face
For Use With	10FFS75UN, Mfr. No. 10FFS37
Body Material	Steel
Coupling Locking Type	Push-to-Connect
Operating Temp. Range	-4 Degrees to 212 Degrees F
Parker Interchange	FEM-372-6FP
Valve Design	Tubular
Locking Mechanism	Standard Sleeve Lock
Bearing Material	Stainless Steel
Coupler Connection Type	FNPT
Standards	ISO 16028
Hansen Interchange	10FFP37
Max. Flow Rate	29 lpm
Includes Valve	Yes
Includes Bearing	Yes
Includes Shut Off	Yes
Pull Ring Material	PTFE
Coupling Component	Plug
Valve Type	2-Way
Finish/Coating	Clear Chromate
Fitting Type	FNPT
Maximum Vacuum	27.4 in Hg
Max. Working Pressure @ 70 F	5,075 psi
Snap-Tite Interchange	74N6-6F
Hose Fitting Gender	Female
