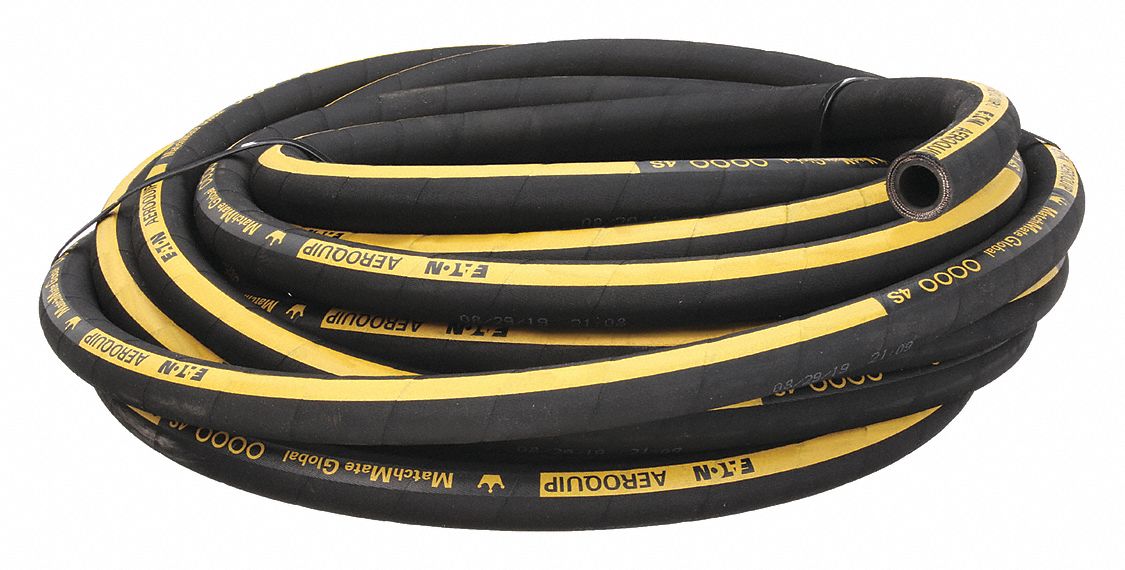

Eaton Aeroquip GH493-16 Hydraulic Bulk Hose, 1 in ID x 1-33/64 in OD, 50 ft, 5,100 psi, Synthetic Rubber, Black, 4-Spiral Wire

Eaton Aeroquip GH493-16 Hydraulic Bulk Hose, 1 in ID x 1-33/64 in OD, 50 ft, 5,100 psi, Synthetic Rubber, Black, 4-Spiral Wire

UPC: | Harmonization / Schedule B : 4009.41.0000

Country of Origin: United States | Shipping Weight: 58.1 lbs

$2,212.69 - $2,212.69
$2,212.69
$2,212.69 - $2,212.69
$2,212.69

Hydraulic Hose, Hose Inside Dia. 1 in, Hose Outside Dia. 1 33/64 in, Hose Length 50 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Spiral, Hose Reinforcement Material Carbon Steel, Hose Color Black, Series GH493, Max. Working Pressure @ 70 °F 5,100 psi, Safety Factor 4:1, Temp. Range -40 °F to 260 °F, Standards ABS, DNV, EN 856 4SP, EN 856 R12, SAE 100R12, ISO 3862 R12, MSHA, USCG, Hose Configuration Bulk Hose.

Series GH493
Type Bulk
Hose Configuration Bulk Hose
Application Hydraulic System Service With Petroleum and Water-Base Fluids, General Industrial Service
Hose Inside Dia. 1 in
Hose Outside Dia. 1-33/64 in (1.48 in)
Hose Length 50 ft
Dash Size 16
Min. Bend Radius 6 in
Hose Color Black
Hose Tube Material Synthetic Rubber
Hose Cover Material Synthetic Rubber
Hose Reinforcement Type Spiral
Hose Reinforcement Material Carbon Steel
Reinforcement 4 Spiral Wire
Max. Working Pressure @ 70 °F 5,100 psi
Safety Factor 4:1
Temp. Range -40 °F to 260 °F
Compatible Chemicals Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Salt Water
Standards ABS, DNV, EN 856 4SP, EN 856 R12, SAE 100R12, ISO 3862 R12, MSHA, USCG
Country of Origin United States
