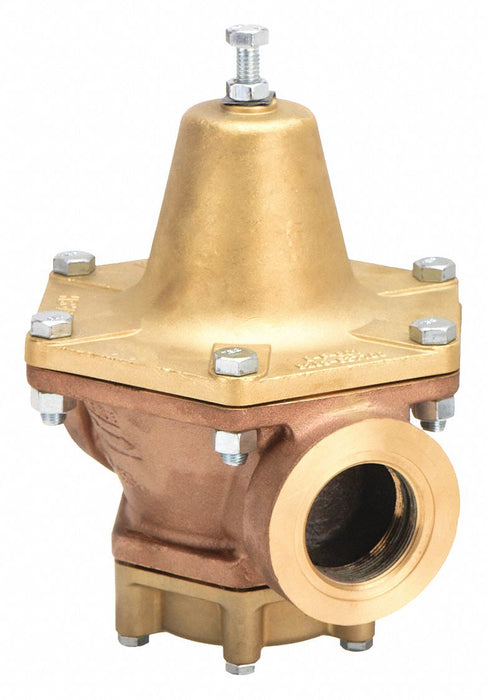

Cash Valve BZDWSSBBS01AD4-0080 Pressure Regulator, NPTF x NPTF, 3/4 in x 3/4 in, Bronze, 50 psig to 110 psig, 180°F

Cash Valve BZDWSSBBS01AD4-0080 Pressure Regulator, NPTF x NPTF, 3/4 in x 3/4 in, Bronze, 50 psig to 110 psig, 180°F

UPC: | Harmonization / Schedule B : 8481.10.0090

Country of Origin: Mexico | Shipping Weight: 9.55 lbs

$714.65 - $714.65
$714.65
$714.65 - $714.65
$714.65

Pressure Regulator, Series B, Body Material Bronze, Inlet Size 3/4 in, Outlet Size 3/4 in, Length 5 1/8 in, Height 6 3/4 in, Pressure Adjustment Range 50 to 110 psi, Max. Temp. 180 Degrees F, Pipe Size 3/4 in, Max. Pressure 400 psi

Series B
Body Material Bronze
Max. Temp. 180 Degrees F
Operating Temperature - Maximum 180 Degrees F
Connection Type FNPT
Inlet Connection Type NPTF
Outlet Connection Type NPTF
Inlet Connection Size 3/4 in
Outlet Connection Size 3/4 in
Pipe Size 3/4 in
Pressure Adjustment Range 50 to 110 psi
Pilot Adjustment - Minimum 50 psig
Pilot Adjustment - Maximum 110 psig
Factory Set Pressure 80 psig
Max. Pressure 400 psig
Operating Pressure - Maximum 400 psig
For Media Air, Water
Application Use on Paint Spray Equipment, Dishwashers, Air Tanks and Equipment, Food, Chemical, and Industrial Process Lines
Overall Height 6-3/4 in
Overall Width 5-1/8 in
