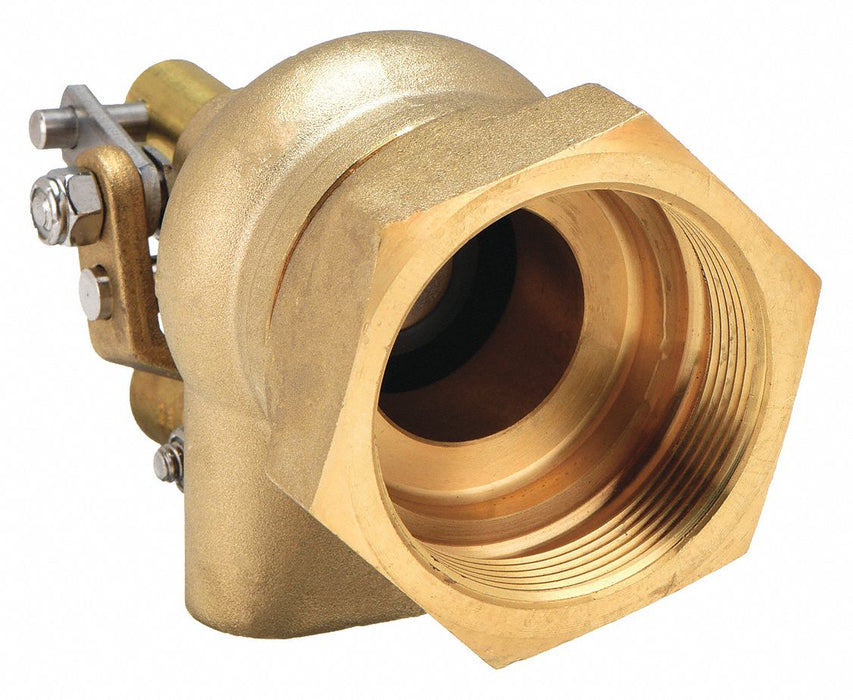

Bob R605T-1-1/2 Float Valve, Angle Brass Body, 1-1/2 in FNPT, Horizontal Piping

Bob R605T-1-1/2 Float Valve, Angle Brass Body, 1-1/2 in FNPT, Horizontal Piping

UPC: | Harmonization / Schedule B : 8481.20.0040

Country of Origin: United States | Shipping Weight: 2.82 lbs

$181.11 - $181.11
$181.11
$181.11 - $181.11
$181.11

Float Valve, Mounting Horizontal Piping, Size 1 1/2 in, Connection Type FNPT, Rod Thread 3/8 In.-16, Rod Length Not Applicable, Rod Material Not Applicable, Body Material Brass, Valve Flow - Pressure (1) 65 psi, Valve Flow - Flow (1) 152 gpm, Valve Flow - Pressure (2) 85 psi, Valve Flow - Flow (2) 180 gpm, Max. Pressure 115 psi, Max. Temp. 180 Degrees F, Valve Material Brass, Float Material Not Applicable

Pipe Size 1 1/2"
Size 1 1/2"
Connection Size - Side 1 1 1/2 in
Nominal Valve Size 1 1/2 in
Connection Size - Side 2 1 1/2 in
Connection Type FNPT
Body Material Brass
Valve Flow - Pressure (1) 65 psi
Max. Temp. 180 Degrees F
Valve Flow - Flow (2) 180 gpm
Rod Thread 3/8 in -16
Mounting Horizontal Piping
Valve Flow - Flow (1) 152 gpm
Valve Flow - Pressure (2) 85 psi
Valve Material Brass
Max. Pressure 115 psi
Flow Rate 112 gpm @ 35 psi, 152 gpm @ 65 psi, 180 gpm @ 85 psi
Maximum Pressure - Operating 115 psi
Arm Adjustability Adjustable
Includes Float and Rod No Float and Rod
For Media Water
Connection Gender - Side 1 Female
Connection Type - Side 1 NPT
Seal Material Buna-N
Operating Temperature - Maximum 180 Degrees F
Manufacturer Warranty 1 yr
Valve Body Style Angle
Seat Style Single Seated
Operating Temperature - Minimum 33 Degrees F
Valve Series R605T High Turbo
Country of Origin United States
