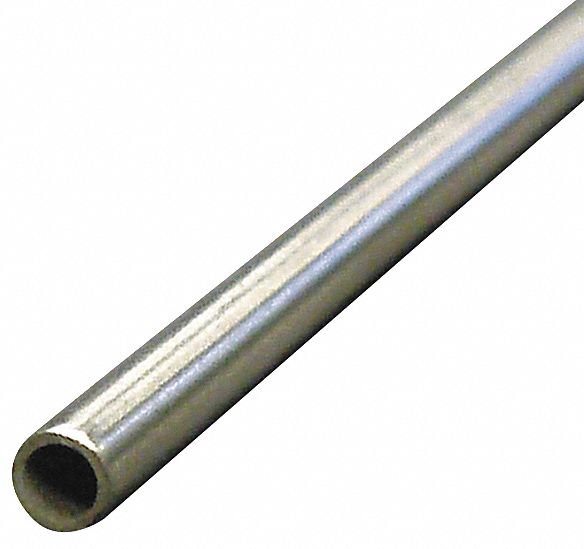

Approved Vendor ZUSA-HTM-97 Tubing, Seamless, 316 Stainless Steel, 3/8 in Outside Dia, 0.245 in Inside Dia, 6 ft Overall Lg

Approved Vendor ZUSA-HTM-97 Tubing, Seamless, 316 Stainless Steel, 3/8 in Outside Dia, 0.245 in Inside Dia, 6 ft Overall Lg

UPC: | Harmonization / Schedule B : 7304.41.3045

Country of Origin: | Shipping Weight: 1.805 lbs

$185.15 - $185.15
$185.15
$185.15 - $185.15
$185.15

Tubing, Cleaned and Capped No, Fabrication Seamless, Inside Diameter 0.245 in, Material 316 Stainless Steel, Material Grade 316, Maximum Operating Pressure 5,452 psi @ 72 Degrees F, Maximum Operating Temperature 1,500 Degrees F, Outside Diameter 3/8 in, Overall Length 6 ft, Resistance Properties Corrosion Resistant, Pitting Resistant, Standards ASTM A213, ASTM A269, Temper Annealed, Tube Form Straight, Wall Thickness 0.065 in

Outside Diameter 3/8 in
Wall Thickness 0.065 in
Tube Length 6 ft
Inside Diameter 0.245 in
Inside Dia. 0.245"
Outside Dia. 3/8"
Outside Dia. Tolerance +0.005 in /-0.005 in
Outside Diameter Tolerance +/-0.005 in
Overall Length 6 ft
Wire Rope Length 6 ft
Length 6 ft
MFR # ZUSA-HTM-97
Zoro # G3487224
UPC # -
Country of Origin Multiple
Tube Material 316 Stainless Steel
Standards ASTM A213, ASTM A269
Type Seamless
Temp. Range -325 Degrees to 1500 Degrees F
Max. Pressure 5452 psi @ 72 Degrees F
Weight per Foot 0.215 lb/ft
Features Ductile at Elevated Temperatures
Market Industrial
Cleaned and Capped No
Fabrication Seamless
Industry Application Chemical Processing, Hydraulic and Instrumentation, Mechanical, Pulp and Paper Industries, Textile
Temper Annealed
System of Measurement Inch
Tube Form Straight
Material Grade 316
Minimum Operating Temperature -325 Degrees F
Maximum Operating Temperature 1,500 Degrees F
Material 316 Stainless Steel
Maximum Operating Pressure 5,452 psi @ 72 Degrees F
For Environment Marine
Resistance Properties Corrosion Resistant, Pitting Resistant
Country of Origin Varies (subject to change)
