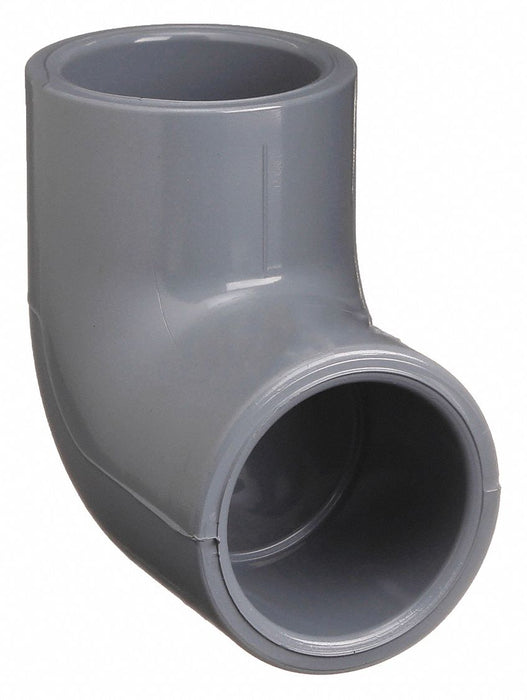

Approved Vendor 9806-015 CPVC 90-Degree Pipe Elbow, Schedule 80, 1-1/2 in

Approved Vendor 9806-015 CPVC 90-Degree Pipe Elbow, Schedule 80, 1-1/2 in, Socket x Socket, Gray

UPC: | Harmonization / Schedule B : 3917.40.0090

Country of Origin: United States | Shipping Weight: 0.5 lbs

$16.84 - $16.84
$16.84
$16.84 - $16.84
$16.84

90 Degrees Elbow, CPVC, Schedule 80, For Pipe Schedule Schedule 80, 1 1/2 in, Female, Socket, 2 5/16 in, 1 1/2 in, Female, Socket, 2 5/16 in, Includes Seal Seal Not Included, For Pipe Outside Diameter 1 1/2 in, 3 47/64 in Overall Length, 470 psi Maximum Operating Pressure, 32 Degrees to 200 Degrees F

Fitting Connection Type Socket x Socket
Pipe Fitting Material CPVC
Basic Pipe Fitting Shape Elbow
Fitting Schedule/Class Schedule 80
Standards ASTM D1784, NSF14 Certified
Basic Pipe Fitting Material Plastic
Color Gray
Pipe Fitting Schedule/Class Schedule 80
Specific Fitting Shape 90 Degree Elbow
Max. Temp. 210 Degrees F
Max. Pressure 471 psi @ 73 Degrees F
Specific Pipe Fitting Shape 90 Degree Elbow
Temp. Range 32 Degrees to 200 Degrees F
Low Lead Compliance Level Certified
Schedule Schedule 80
Includes Shield No
Application Non-Potable Water, Potable Water
Low Lead Certified Standard NSF 61
Fitting Side B Type Socket
Fitting Side A Gender Female
Includes Pre-Applied Thread Sealant No
Includes Plug No
For Pipe Schedule 80
Includes Seal No
Maximum Operating Pressure 470 psi @ 73 Degrees F
Fitting Side B Gender Female
Fitting Side A Type Socket
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin United States
