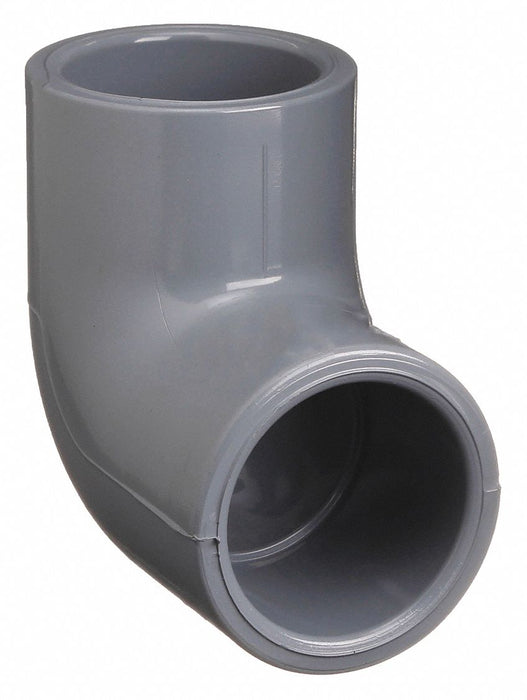

Approved Vendor 9806-010 CPVC 90-Degree Pipe Elbow, Schedule 80, 1 in

Approved Vendor 9806-010 CPVC 90-Degree Pipe Elbow, Schedule 80, 1 in, Socket x Socket, Gray

UPC: | Harmonization / Schedule B : 3917.40.0090

Country of Origin: United States | Shipping Weight: 0.2 lbs

$9.49 - $9.49
$9.49
$9.49 - $9.49
$9.49

90 Degrees Elbow, CPVC, Schedule 80, For Pipe Schedule Schedule 80, 1 in, Female, Socket, 1 11/16 in, 1 in, Female, Socket, 1 11/16 in, Includes Seal Seal Not Included, For Pipe Outside Diameter 1 in, 2 7/8 in Overall Length, 630 psi Maximum Operating Pressure, 32 Degrees to 200 Degrees F

Fitting Connection Type Socket x Socket
Pipe Fitting Material CPVC
Basic Pipe Fitting Shape Elbow
Fitting Schedule/Class Schedule 80
Standards ASTM D1784, NSF14 Certified
Basic Pipe Fitting Material Plastic
Specific Pipe Fitting Shape 90 Degree Elbow
Max. Temp. 210 Degrees F
Color Gray
Specific Fitting Shape 90 Degree Elbow
Max. Pressure 630 psi @ 73 Degrees F
Pipe Fitting Schedule/Class Schedule 80
Temp. Range 32 Degrees to 200 Degrees F
Includes Pre-Applied Thread Sealant No
Application Non-Potable Water, Potable Water
Includes Plug No
Fitting Side A Type Socket
Fitting Side B Type Socket
Fitting Side A Gender Female
For Pipe Schedule 80
Low Lead Compliance Level Certified
Low Lead Certified Standard NSF 61
Schedule Schedule 80
Fitting Side B Gender Female
Includes Shield No
Maximum Operating Pressure 630 psi @ 73 Degrees F
Includes Seal No
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin United States
