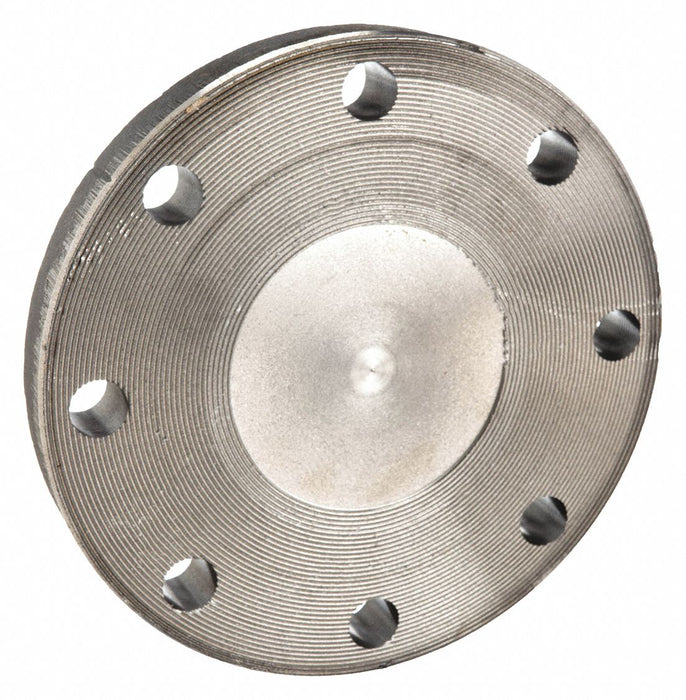

Anvil 0308017805 Metal Pipe Flange, 12 in, Female NPT Blind, Cast Iron, Flat Flange, Class 125, Black

Anvil 0308017805 Metal Pipe Flange, 12 in, Female NPT Blind, Cast Iron, Flat Flange, Class 125, Black

UPC: 690291021947 | Harmonization / Schedule B : 7307.11.0030

Country of Origin: United States | Shipping Weight: 85.6 lbs

$1,603.73 - $1,603.73
$1,603.73
$1,603.73 - $1,603.73
$1,603.73

Flange, Flat, 12 in Nominal Pipe Size, Flanged, 19 in Flange Outside Diameter, 19 in Overall Length, Cast Iron, Plain, A197, Class Class 125, For Pipe Schedule Not Applicable, 175 psi Maximum Operating Pressure, -20 Degrees to 150 Degrees F, Number of Bolt Holes 12, Not Applicable Bolt Circle Diameter, Not Applicable Bolt Hole Diameter

Specific Fitting Shape Blind Flange
Fitting Connection Type Flanged
Pipe Fitting Material Cast Iron
Class Class 125
Standards UL: FM Approved: ASME B16.4
Temp. Range -20 Degrees to 150 Degrees F
Fitting Schedule/Class Class 125
Number of Holes 12
Specific Pipe Fitting Shape Blind Flange
Basic Pipe Fitting Material Metal
Max. Pressure 175 psi@-20 Degrees to 150 Degrees F
Pipe Fitting Schedule/Class Class 125
Pipe Fitting Connection Type Flanged
Saturated Steam Pressure 125 psi
Basic Pipe Fitting Shape Flange
Application Fire Protection, Non-Potable Water
Maximum Operating Pressure 175 psi
Number of Bolt Holes 12
Type Faced & Drilled Threaded
Country of Origin United States
