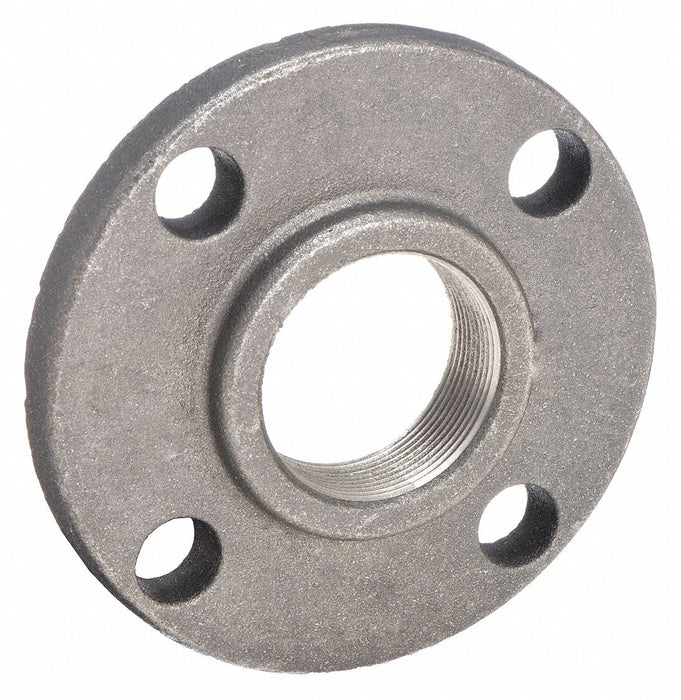

Anvil 0308004605 Metal Pipe Flange, 12 in, Female NPT Threaded, Cast Iron, Flat Flange, Class 125, Black

Anvil 0308004605 Metal Pipe Flange, 12 in, Female NPT Threaded, Cast Iron, Flat Flange, Class 125, Black

UPC: 690291021435 | Harmonization / Schedule B : 7307.11.0030

Country of Origin: United States | Shipping Weight: 39.3 lbs

$1,239.11 - $1,239.11
$1,239.11
$1,239.11 - $1,239.11
$1,239.11

Flange, Flat, 12 in Nominal Pipe Size, Flanged x FNPT, 19 in Flange Outside Diameter, 19 in Overall Length, Cast Iron, Plain, A197, Class Class 125, For Pipe Schedule Not Applicable, 175 psi Maximum Operating Pressure, -20 Degrees to 150 Degrees F, Number of Bolt Holes 12, Not Applicable Bolt Circle Diameter, Not Applicable Bolt Hole Diameter

Specific Fitting Shape Flange
Fitting Connection Type Flanged x FNPT
Pipe Fitting Material Cast Iron
Class Class 125
Standards UL: FM Approved: ASME B16.4
Basic Pipe Fitting Material Metal
Pipe Fitting Connection Type Flanged x FNPT
Basic Pipe Fitting Shape Flange
Number of Holes 12
Temp. Range -20 Degrees to 150 Degrees F
Saturated Steam Pressure 125 psi
Pipe Fitting Schedule/Class Class 125
Max. Pressure 175 psi@-20 Degrees to 150 Degrees F
Specific Pipe Fitting Shape Flange
Fitting Schedule/Class Class 125
Application Fire Protection, Non-Potable Water
Number of Bolt Holes 12
Maximum Operating Pressure 175 psi
Type Faced & Drilled Threaded
Country of Origin United States
