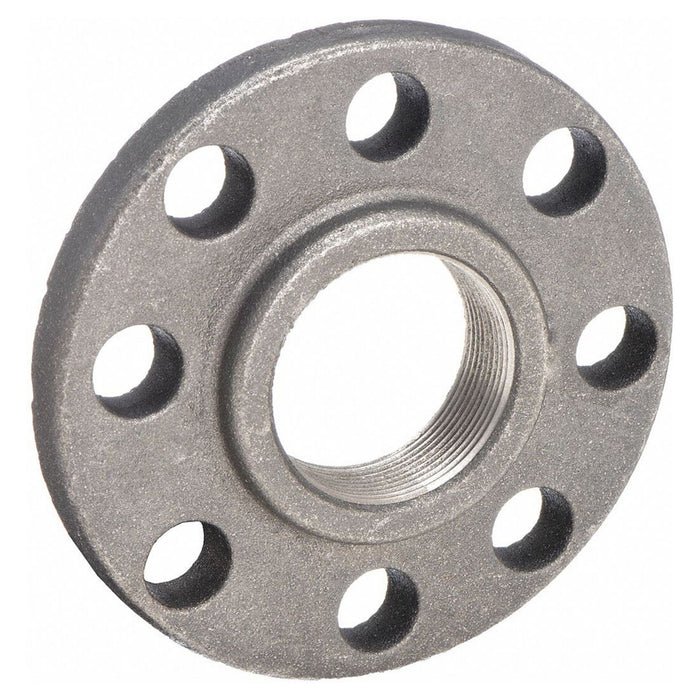

Anvil 0308003607 Metal Pipe Flange, 4 in, Female NPT Threaded, Cast Iron, Flat Flange, Class 125, Black

Anvil 0308003607 Metal Pipe Flange, 4 in, Female NPT Threaded, Cast Iron, Flat Flange, Class 125, Black

UPC: 690291021381 | Harmonization / Schedule B : 7307.11.0030

Country of Origin: United States | Shipping Weight: 10.85 lbs

$136.38 - $136.38
$136.38
$136.38 - $136.38
$136.38

Flange, Flat, 4 in Nominal Pipe Size, Flanged x FNPT, 9 in Flange Outside Diameter, 9 in Overall Length, Cast Iron, Plain, A197, Class Class 125, For Pipe Schedule Not Applicable, 175 psi Maximum Operating Pressure, -20 Degrees to 150 Degrees F, Number of Bolt Holes 8, Not Applicable Bolt Circle Diameter, Not Applicable Bolt Hole Diameter

Specific Fitting Shape Flange
Fitting Connection Type Flanged x FNPT
Pipe Fitting Material Cast Iron
Class Class 125
Standards UL: FM Approved: ASME B16.4
Fitting Schedule/Class Class 125
Basic Pipe Fitting Material Metal
Pipe Fitting Connection Type Flanged x FNPT
Pipe Fitting Schedule/Class Class 125
Temp. Range -20 Degrees to 150 Degrees F
Saturated Steam Pressure 125 psi
Specific Pipe Fitting Shape Flange
Basic Pipe Fitting Shape Flange
Max. Pressure 175 psi@-20 Degrees to 150 Degrees F
Number of Holes 4
Number of Bolt Holes 8
Application Fire Protection, Non-Potable Water
Maximum Operating Pressure 175 psi
Type Faced & Drilled Threaded
Country of Origin United States
