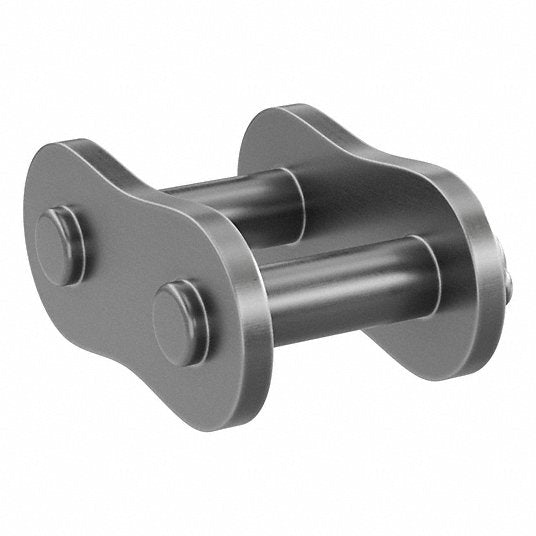

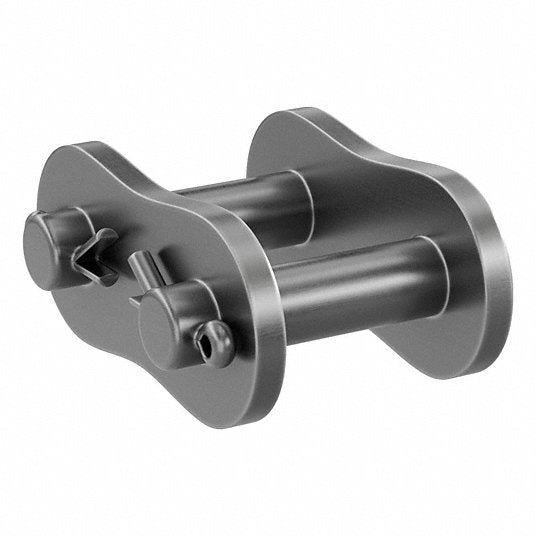

Tsubaki 80 CL Connecting Link: For Std Roller Chains, 80, Single Strand, 1 in Pitch, 5/8 in Roller Dia, RS

Connecting Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 1 25/64 in, Chain Number 80, Roller Diameter 5/8 in, Pitch 1 in, Link Type Connecting, Number of Strands 1, Application Automobile Engines, Container Straddle Carriers, Crawler Drills, Draw Benches, Marine Diesel Engines, Oil-Well Drilling Equipment, Pump Drives, Roller Tables, Tilting Tables, Features Heat Treatment, Prelubrication, Heavy Series No, Inside Width 5/8 in, Lubrication Maintenance Free

Roller Chain Link Item	Connecting Link
Roller Chain Link Type	Standard Riveted
Chain Link Material	Carbon Steel
Industry Chain Pitch	1 in
Number of Strands	1
Item	Connecting Link
Material	Steel
Type	Single Strand
Temp. Range	15 Degrees to 300 Degrees F
Pitch	1 in
Lubrication	Maintenance Free
Tensile Strength	17,640 lbf
Heavy Series	No
Standards	ANSI, ASME
Series	RS
Pin Contruction	Riveted Pin
Chain Construction	Riveted Pin
Roller Chain Standard	ANSI
Link Type	Connecting Link
Features	Heat Treatment, Prelubrication
Application	Automobile Engines, Container Straddle Carriers, Crawler Drills, Draw Benches, Marine Diesel Engines, Oil-Well Drilling Equipment, Pump Drives, Roller Tables, Tilting Tables
Minimum Operating Temperature	15 Degrees F
Chain Number	80
Working Load Limit	3,300 lb
Maximum Operating Temperature	300 Degrees F
