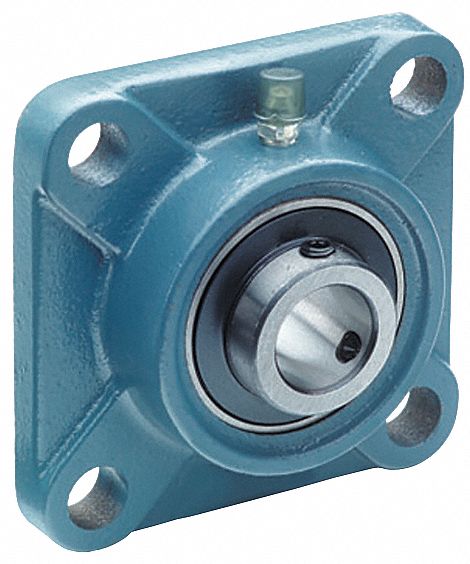

Tritan UCF207-20 4-Bolt Flange Bearing 1-1/4 Bore

Tritan UCF207-20 4-Bolt Flange Bearing, Radial Ball, 1-1/4 in Bore, Cast Iron, Set Screw Locking

UPC: 888569052681 | Harmonization / Schedule B : 8483.20.4040

Country of Origin: China | Shipping Weight: 3 lbs

$87.47 - $87.47
$87.47
$87.47 - $87.47
$87.47

4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing UC207-20, Lubricant Material NLGI #2 Equivalent, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 3 5/8 in, Number of Mount Holes 4, Overall Height 4 39/64 in, Overall Length 4 39/64 in

System of Measurement Inch
Housing Type Square
Number of Mount Holes 4
Bearing Insert Type Radial Ball
Shaft Locking Type Set Screw
Housing Material Cast Iron
Series UCF
Bearing Insert Material Steel
Standards AFBMA, ISO Certified
Temp. Range -4 to +248 F
Static Load Capacity 3440 lb
Finish Painted
Dynamic Load Capacity 5770 lb
Rolling Element Rows 1
Bore Type Cylindrical
Features Anti-Rotation Device, Cast-Iron Housing, Dual Heavy-Duty Slinger Type Contact Seals, Standard Duty Square Flange Unit, Set Screw Locking, Wide Inner Ring Bearing
Closure Double Sealed
Bearing Material Grade 52100
Lubrication Openings One Zirc Fitting
Lubricant Material NLGI #2 Equivalent
Included Bearing UC207-20
Seal Material Rubber
Expansion Type Fixed
Country of Origin China
