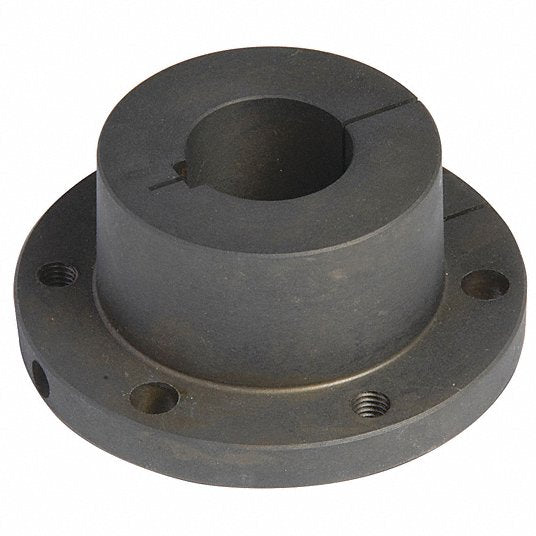

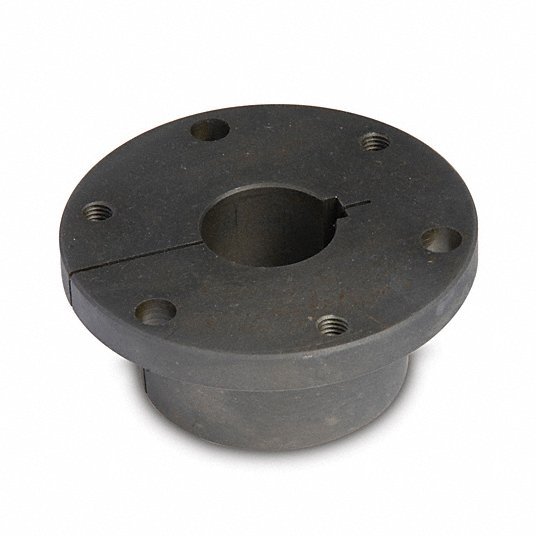

TB Woods SK11516 Quick Detachable Bushing SK, 1 15/16 in Bore Dia, 1.875 in Overall Lg, Inch

Quick Detachable Bushing, Bushing Type Quick Detachable, Bore Bushing Series SK, Bore Diameter 1 15/16 in, Length 1.875 in, Bolt Circle Diameter 3.31 in, Bolt Size 5/16 In.-18 x 2 in, System of Measurement Inch, Bushing Diameter 2.813 in, Flange Type Split, Flange Width 1/2 in, For Shaft Type Keyed, Includes (3) Cap Screws, Keyway Height 1/4 in, Keyway Width 1/2 in, Length Less Flange 1.375 in, Material Steel, Overall Diameter 3.875 in, SAE Grade 5, Taper 3/4 in Per ft

Bore Bushing Series	SK
UPC	698672701273
Taper	3/4 in Per ft
Material	Steel
SAE Grade	5
Includes	(3) Cap Screws
Flange Type	Split
System of Measurement	Inch
Bushing Type	Quick Detachable
Maximum Torque	7,000 in-lb
For Shaft Type	Keyed
