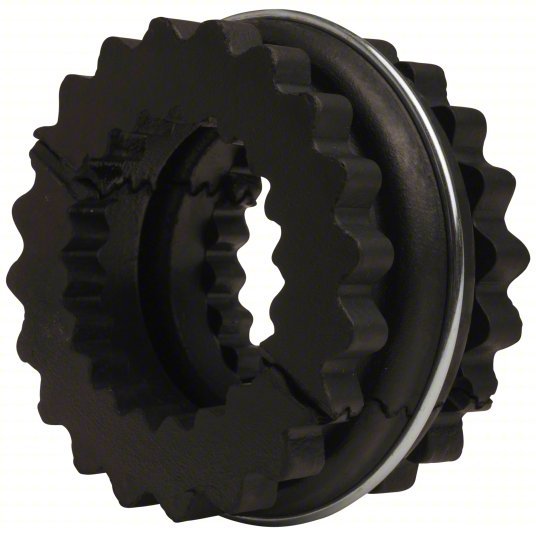

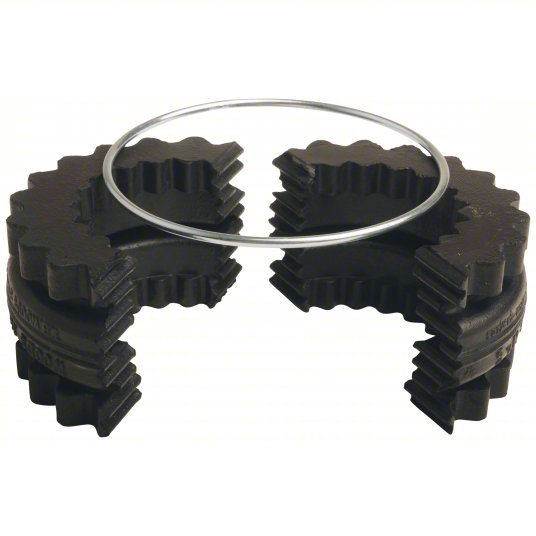

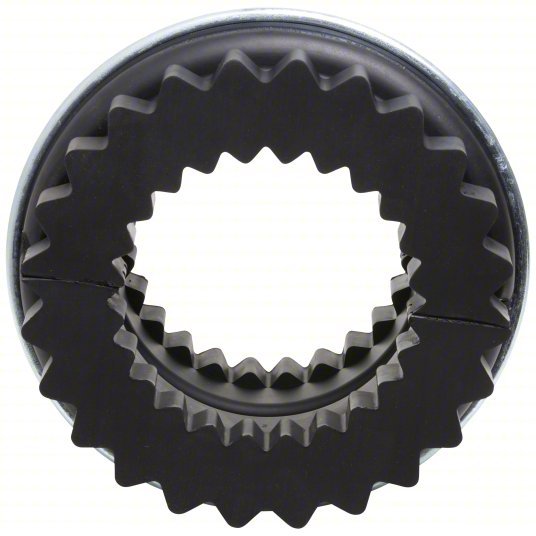

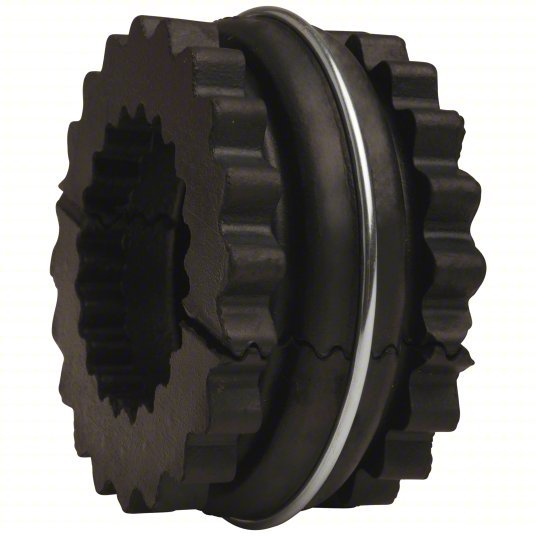

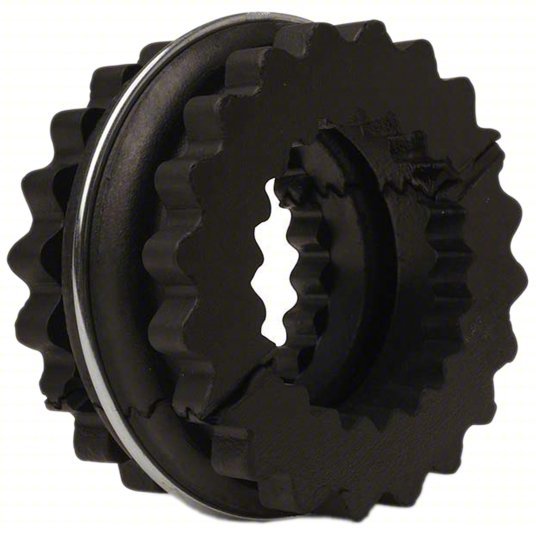

TB Wood's 5 Sleeve Coupling Insert 5 Coupling Size, 7,600 RPM Max Speed, 312 in-lb Rated Torque, EPDM

Sleeve Coupling Insert, Coupling Size 5, Maximum Speed 7,600 RPM, Maximum Torque 312 in-lb, Outside Diameter 2 53/64 in, Insert Construction - New 2-Piece with Retaining Ring, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 0.5 hp, Insert Material EPDM, Insert Width 1 9/16 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Torsional Stiffness 916 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 275 Degrees F

Flange Type - Sleeve Couplings	E
Insert Design - Couplings	Two-Piece with Retaining Ring
Material - Inserts	EPDM Rubber
Rated Torque	312 in-lb
Max. RPM	7,600 RPM
HP Rating @ 100 RPM	0.5 hp
UPC	698672660020
HP Rating @ 1200 RPM	5.94 hp
Insert Design	Two-Piece with Retaining Ring
HP Rating @ 3600 RPM	17.82 hp
Operating Temp.	-30 Degrees to 275 Degrees F
HP Rating @ 1800 RPM	8.91 hp
Body Style	5E
Application	Blowers, Compressors, Conveyors, Mixers, Motors, Pumps
Item - Sleeve Coupling Inserts	Sleeve Coupling Insert
Insert Material	EPDM
Angular Misalignment	1 Degrees
Minimum Operating Temperature	-30 Degrees F
Features	4-Way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
Maximum Torque	312 in-lb
Resistance Properties	Chemical Resistant, Oil Resistant
Torsional Stiffness	916 in-lb/rad
Horsepower @ 100 RPM	0.5 hp
Parallel Misalignment	0.015 in
Maximum Operating Temperature	275 Degrees F
Weight	0.25 lb
For Misalignment Type	Angular, Parallel
Maximum Speed	7,600 RPM
System of Measurement	Inch
Horsepower @ RPM	18 hp @3,600 RPM, 8.9 hp @1,800 RPM
