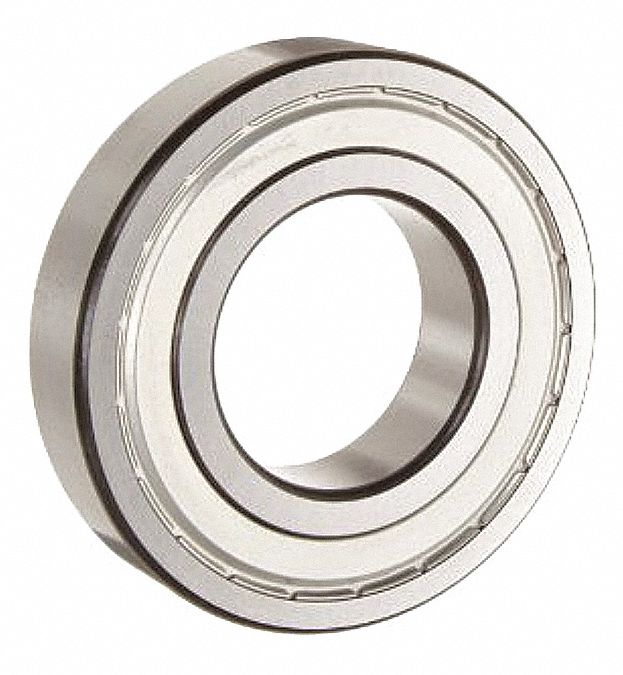

SKF 6205 2Z JEM Radial Ball Bearing, 6205, Dbl Shield, 25 mm Bore, 52 mm OD, 15 mm Wd, Alloy Steel Ring

UPC: | Harmonization / Schedule B : 8482.10.5052

Country of Origin: | Shipping Weight: 0.3 lbs

Original price $59.00 - Original price $59.00
Original price
$59.00
$59.00 - $59.00
Current price $59.00

These radial ball bearings are intended for general purpose applications that operate at high speeds with low loads. They have a single row of ball rollers for radial loads, but can support some axial movement.

Double Shielded closures have a shield on both sides to protect the rolling elements from dust and debris, but allow lubricants to get in. Shields are made of metal and are not limited by speed or high temperature conditions.

Bearing Industry Number 6205
Closure & Seal Type Double Shielded
Bore Diameter 25 mm
Bore Diameter Tolerance +0/-0.008 mm
Outside Diameter 52 mm
Outside Diameter Tolerance +0/-11 micron
Outer Ring Width 15 mm
Fillet Radius 1 mm
Ring Material Alloy Steel
Ring Material Grade 100Cr6
Ball Material Alloy Steel
Cage Material Steel
Shield Material Steel
Seal Material Iron
Includes Retaining Ring No
Number of Rows One
ABEC Rating 1
Dynamic Radial Load Capacity 14.8 kN
Static Radial Load Capacity 7.8 kN
Maximum Axial Load 3,300 lbf
Maximum Speed 14,000 RPM
Temperature Range -40 °F to 212 °F
Lubricant Material MT47 Grease
