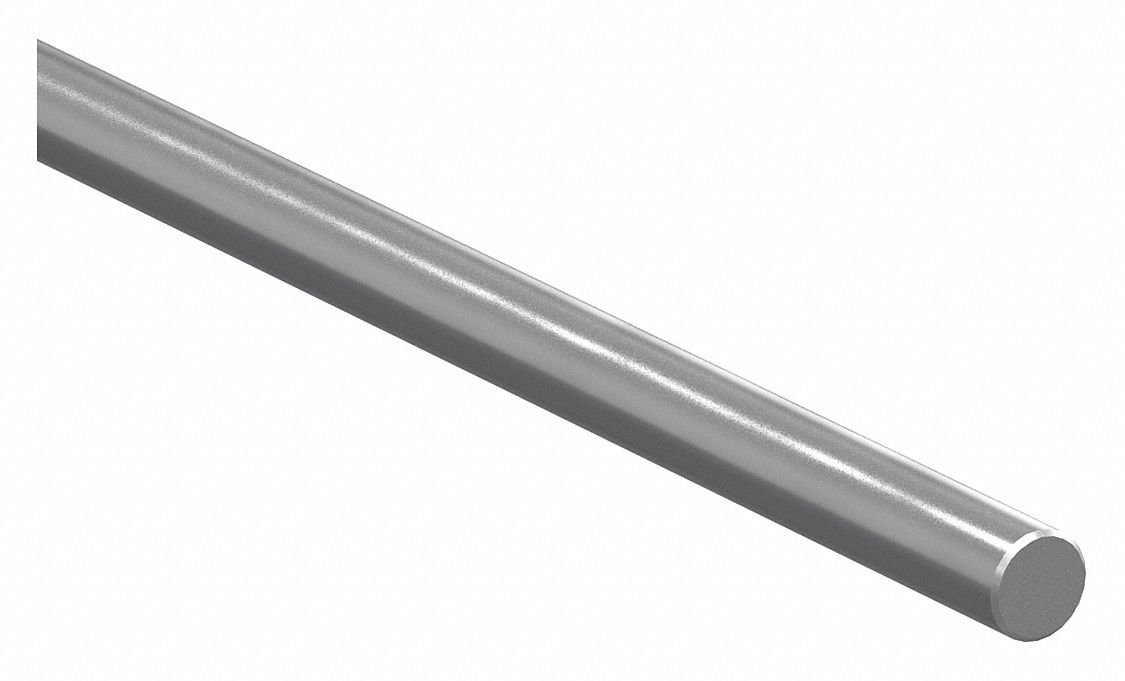

PBC Linear NIL10SS-048.000 Linear Shaft, Solid, 5/8 in Dia, 48 in Lg, Stainless Steel, Polished

PBC Linear NIL10SS-048.000 Linear Shaft, Solid, 5/8 in Dia, 48 in Lg, Stainless Steel, Polished

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 4.18 lbs

$312.53 - $312.53
$312.53
$312.53 - $312.53
$312.53

Linear Shaft, System of Measurement Inch, Diameter 5/8 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 48 in, Surface Hardness - Minimum 50 HRC, Material Stainless Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Stainless Steel
Finish Polished
For Use With Linear Ball Bearings, Lined Bearings
Min. Surface Hardness 50 RC
Temp. Range (F) 0 Degrees - 400 Degrees F
Type Solid Shaft
System of Measurement Inch
Surface Roughness 8 uin
Shaft Type Solid Shaft
Weight Per Inch 0.087 lb
Core Type Solid
Surface Hardness - Minimum 50 HRC
Series NILSS
Tolerance Class L
Operating Temperature - Maximum 400 Degrees F
End Type Plain Ends
Operating Temperature - Minimum 0 Degrees F
Roughness 8-12 uin RMS
Country of Origin United States
