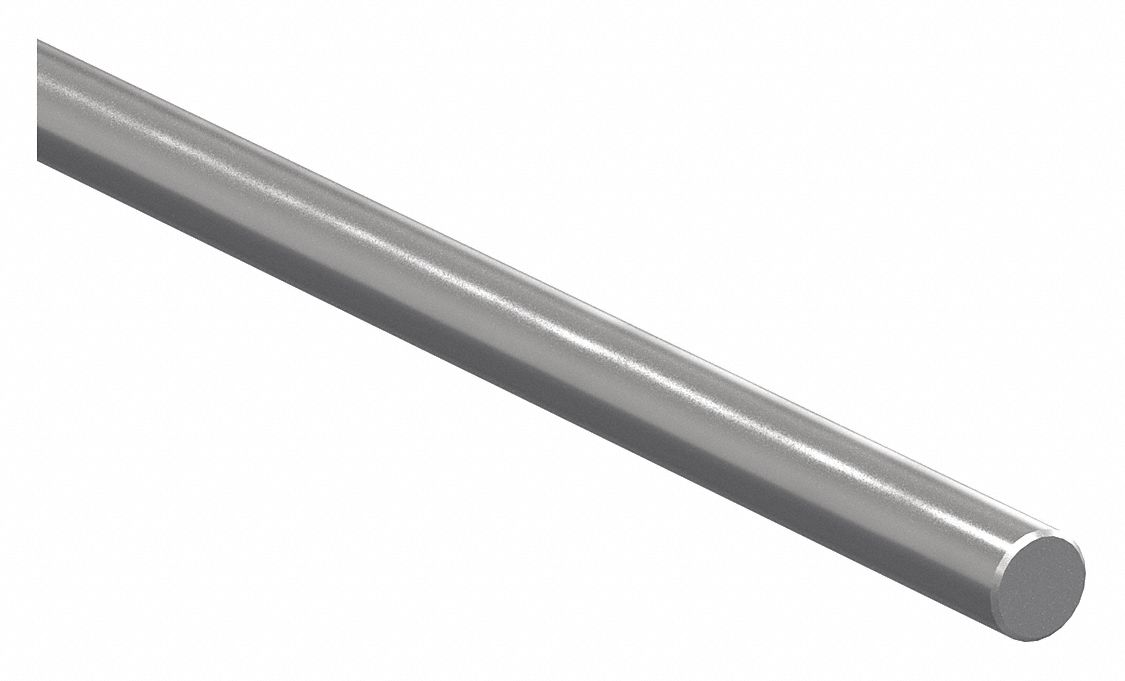

PBC Linear NIL10SS-036.000 Linear Shaft, Solid, 5/8 in Dia, 36 in Lg, Stainless Steel, Polished

PBC Linear NIL10SS-036.000 Linear Shaft, Solid, 5/8 in Dia, 36 in Lg, Stainless Steel, Polished

UPC: | Harmonization / Schedule B : 7222.20.0000

Country of Origin: United States | Shipping Weight: 3.13 lbs

$248.08 - $248.08
$248.08
$248.08 - $248.08
$248.08

Linear Shaft, System of Measurement Inch, Diameter 5/8 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 36 in, Surface Hardness - Minimum 50 HRC, Material Stainless Steel, Finish Polished, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Stainless Steel
Temp. Range (F) 0 Degrees - 400 Degrees F
Min. Surface Hardness 50 RC
For Use With Linear Ball Bearings, Lined Bearings
Finish Polished
Type Solid Shaft
System of Measurement Inch
Surface Roughness 8 uin
Series NILSS
End Type Plain Ends
Roughness 8-12 uin RMS
Core Type Solid
Shaft Type Solid Shaft
Operating Temperature - Maximum 400 Degrees F
Surface Hardness - Minimum 50 HRC
Tolerance Class L
Weight Per Inch 0.087 lb
Operating Temperature - Minimum 0 Degrees F
Country of Origin United States
