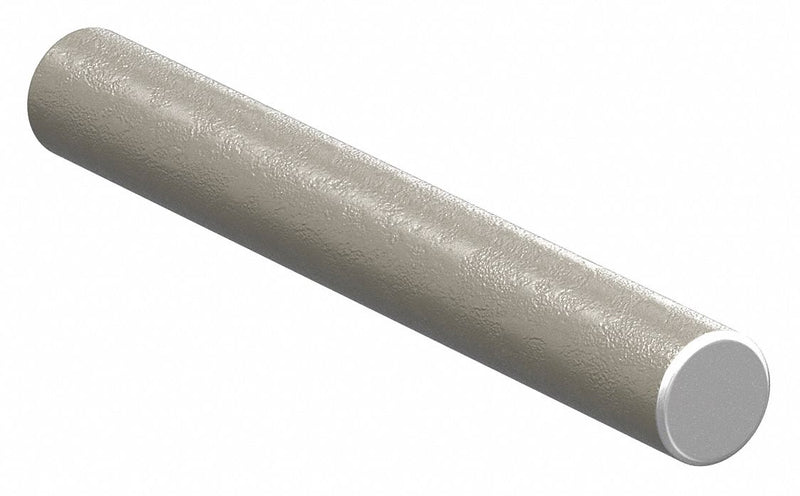

PBC Linear CC12-009.000 Linear Shaft, Solid, 3/4 in Dia, 9 in Lg, Aluminum Alloy, Ceramic Coated

PBC Linear CC12-009.000 Linear Shaft, Solid, 3/4 in Dia, 9 in Lg, Aluminum Alloy, Ceramic Coated

UPC: | Harmonization / Schedule B : 7604.29.1010

Country of Origin: United States | Shipping Weight: 0.39 lbs

$23.73 - $23.73
$23.73
$23.73 - $23.73
$23.73

Linear Shaft, System of Measurement Inch, Diameter 3/4 in, Shaft Type Solid Shaft, End Type Plain Ends, Core Type Solid, Overall Length 9 in, Surface Hardness - Minimum 70 HRC, Material Aluminum Alloy, Finish Ceramic Coated, Diameter Tolerance - Minimum -0.001 in, Diameter Tolerance - Maximum 0 in

Material Aluminum Alloy
For Use With Lined Bearings, Pillow Blocks
Temp. Range (F) 0 Degrees - 400 Degrees F
Min. Surface Hardness 70 RC
Finish Ceramic Coated
Type Solid Shaft
System of Measurement Inch
Series CC
Core Type Solid
Surface Hardness - Minimum 70 HRC
Operating Temperature - Maximum 400 Degrees F
Shaft Type Solid Shaft
Operating Temperature - Minimum 0 Degrees F
End Type Plain Ends
Weight Per Inch 0.043 lb
Country of Origin United States
