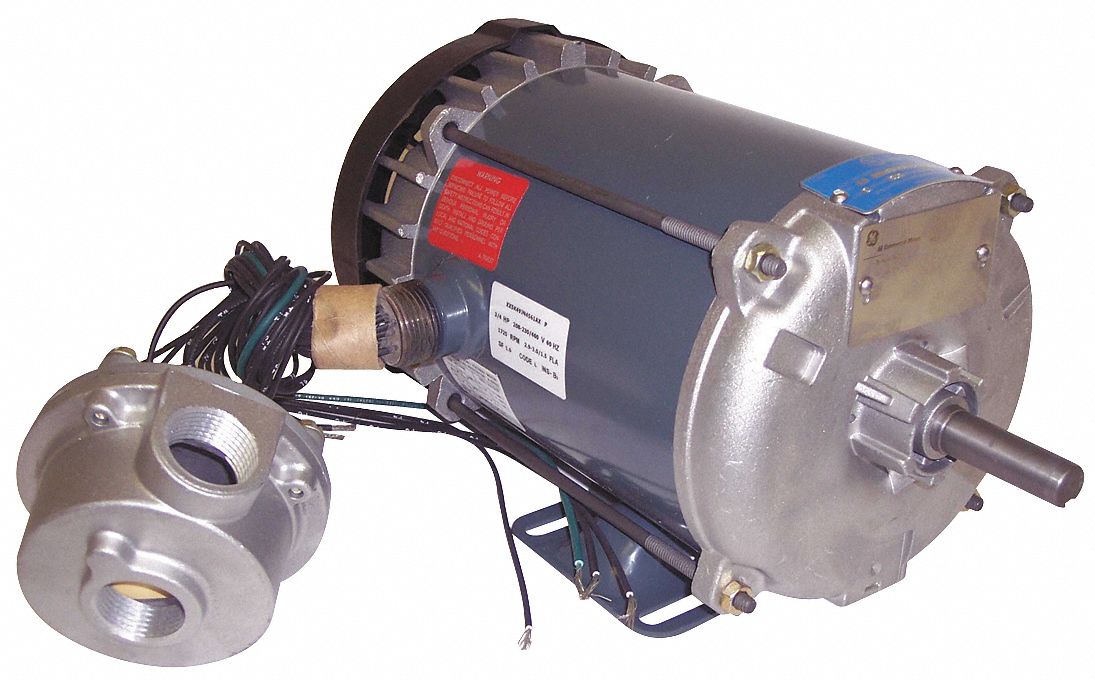

Leeson 056C17G15523 Hazardous Location Motor, 1/2 HP, 1725 RPM, 115/208-230V, Single Phase, Capacitor-Start, TEFC, Frame 56, Class I/II Div I

Leeson 056C17G15523 Hazardous Location Motor, 1/2 HP, 1725 RPM, 115/208-230V, Single Phase, Capacitor-Start, TEFC, Frame 56, Class I/II Div I

UPC: | Harmonization / Schedule B : 8501.40.4040

Country of Origin: United States | Shipping Weight: 28.93 lbs

$767.92 - $767.92
$767.92
$767.92 - $767.92
$767.92

Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.8/4.2-4.4 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous

Motor Design Capacitor-Start
Phase Single
HP 1/2 hp
RPM Range 1,701-1,800
Voltage 115/208-230V AC
Frame 56
Hazardous Location Class Class I, Class II
Motor Thermal Protection Auto
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Mounting Type Rigid Base
Standards CSA Certified (LR47504), UL Listed (E12044)
Motor Application Hazardous Location
Motor Shaft Rotation CW/CCW
Temp. Code T3B
Motor Service Factor 1
Duty Continuous
Motor Frame Material Steel
Motor Bearings Ball
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Full Load Amps 8.8/4.2-4.4 A
Hz 60 Hz
Max. Ambient Temp. 40 Degrees C
Motor Shaft Design Keyed
Frame Material Rolled steel
Ins. Class B
Includes Conduit Box, Leads through 1 in NPT Nipple
Nameplate RPM 1,725 RPM
Nominal Efficiency 85.5 %
Duty Cycle Continuous
Usable @ 200V Not Usable at 200V
Weight 28.93 lb
Usable @ 208V Usable at 208V
No. of Speeds 1
Motor Mounting Position Horizontal
Conduit Box Location Exterior
Hazardous Location Division Division I
Hazardous Location Group Group C, Group D, Group E, Group F, Group G
Country of Origin United States
