KVM Tools 2517X2 - 3/8 Taper Lock Bushing 2517, 2 3/8 in Bore Dia, 1.75 in Overall Lg, Inch, 8° - KVM Tools Inc.KV813A07

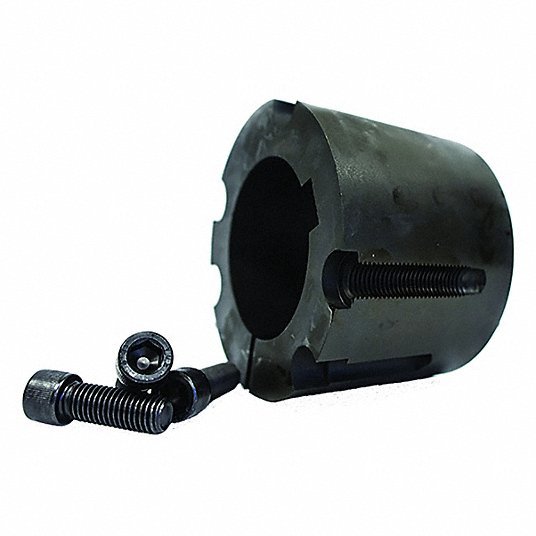

KVM Tools 2517X2-3/8 Taper Lock Bushing 2517, 2 3/8 in Bore Dia, 1.75 in Overall Lg, Inch, 8°

UPC: 195057292673 | Harmonization / Schedule B : 8483.60.8000

Country of Origin: China | Shipping Weight: 2.05 lbs

$67.40 - $67.40
$67.40
$67.40 - $67.40
$67.40
Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 2517, Bore Diameter 2 3/8 in, Length 1.75 in, Bolt Circle Diameter 3.25 in, Bolt Size Not Applicable, System of Measurement Inch, Bushing Diameter Not Applicable, Fastener Tightening Torque Capacity 11,300 in-lb, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 5/16 in, Keyway Width 5/8 in, Length Less Flange Not Applicable, Material Steel, Overall Diameter 3.375 in
Bore Bushing Series 2517
Includes (2) Set Screws
Bushing Type Taper Lock
System of Measurement Inch
Taper 8 Degrees
UPC 195057292673
Fastener Tightening Torque Capacity 11,300 in-lb
Flange Type Flangeless
Material Steel
For Shaft Type Keyed
Maximum Torque 11,300 in-lb
