Husky Rack & Wire 184209635096DS Pallet Rack Starter Unit 102 in x 42 in x 8 ft, 16 ga Beams, 14 ga Uprights

Pallet Rack Starter Unit, Beam Height 3 1/2 in, Beam Step Depth 3/4 in, Beam Step Height 1 1/2 in, Step Beam Beam Style, 16 ga, Footplate Depth 4 in, Footplate Width 4 1/4 in, Overall Depth 42 in, Overall Height 8 ft, Overall Width 102 in, Load Capacity per Shelf 4,270 lb, Starter Pallet Rack Configuration, 14 ga, Upright Load Capacity @ 36 in 21,450 lb, Yes, Number of Levels 2, Whole Unit Load Capacity 8,088 lb, Usable Width 8 ft, RMI, Green/Orange, Teardrop Connection Type

Pallet Rack Construction	Teardrop
Pallet Rack Style	Roll Formed
Capacity per Shelf	4,044 lb
Number of Shelves	2
Color	Green/Orange
Beam Gauge	16 ga
Load Capacity	21,450 lb @ 36 in Vertical Beam Spacing
Material	Steel
Footplates	4 in x 4 1/4 in
Upright Gauge	14 ga
Standards	RMI
Finish	Polyurethane (Rack); Galvanized (Deck)
Includes	(2) Uprights, (4) Beams, (4) Wire Decks
Pallet Rack Beam Style	Step Beam
Number of Levels	2
Whole Unit Load Capacity	8,088 lb

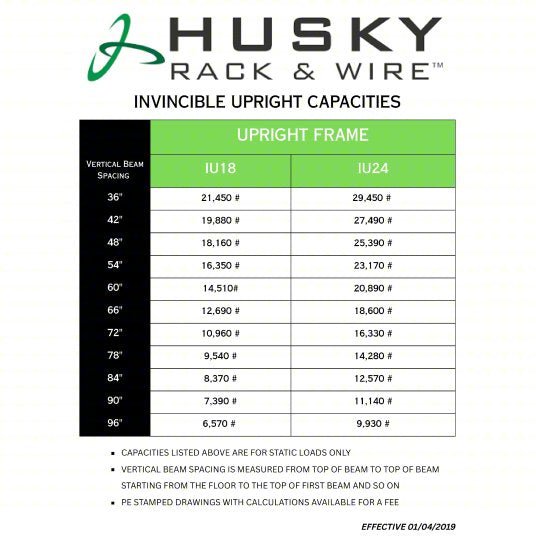

Upright Load Capacity @ 36 in	21,450 lb
Beam Style	Step Beam
Includes Decking	Yes
Connection Type	Teardrop
Load Capacity per Shelf	4,270 lb
Pallet Rack Configuration	Starter
Metal Forming Type	Roll Formed
