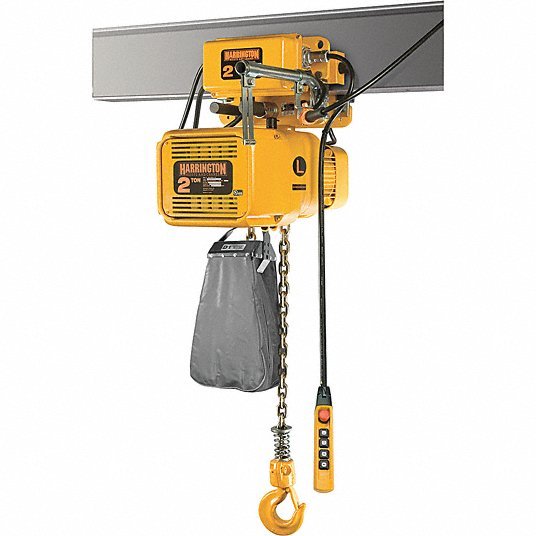

Harrington NERM020CD-L-20 / 230V Electric Chain Hoist H4 Heavy Duty, Motorized Trolley, 230V AC, 20 ft Lift Lg

Electric Chain Hoist, Duty Classification H4, Mount Type Motorized Trolley, Maximum Lifting Capacity 4,000 lb, Number of Speeds 2, Programmable Programmable by VFD, Fixed Lift Speed Not Applicable, Minimum Lift Speed 1 fpm, Maximum Lift Speed 7 fpm, Trolley Speed 40 fpm, Maximum Lifting Length 20 ft, Current at Minimum Voltage 5.1 A, Current at Maximum Voltage 1.7 A, Motor Horsepower 1 1/4 hp, Operating Voltage 230V AC, Headroom 27 3/16 in, For Minimum Beam Height 4 29/32 in

Color	Yellow
Electric Hoist Item	Chain Hoist
Hoist Lift	20 ft
Hoist Mount	Motorized Trolley
Includes	Motorized Trolley, Safety Latch, Safety Standards
Lift Speed	7/1 fpm
Load Capacity	4,000 lb
Min. Between Hooks	27 13/64 in
Motor HP	1.2 hp
Phase	3
Standards	ANSI/ASME B30.16, ASME HST-1, NFPA 70, RoHS Compliant, UL 1340
Voltage	230V AC
Wheel Material	Stamped Steel
Lubrication	Oil Bath
Finish	Electrostatic Enamel
Reeving	2
Brake	DC Current
Hz	60
Control Cord	16 ft
Classification	H4
Thermal Protection	Yes
Clutch	Friction
Control	110V Push Button Control Pendant
Trolley Speed	40 fpm
Type	Electric Chain Hoist
Number of Speeds	2
Trolley Configuration	Motorized Trolley
Amps @ Low Volts	5.1 A
Features	Dual Speed Trolley VFD, Rubber Bumpers, Side Guide Rollers
Starts and Stops per Hour	120, 240
Includes Brake	Brake Included
Maximum Lifting Capacity	4,000 lb
Controls	Push Button Pendant
Minimum Lift Speed	1 fpm
Mount Type	Motorized Trolley
Pendant IP Rating	IP65
Trolley IP Rating	IP55
Chain Grade	Grade 80
For Outdoor Use	Yes
Current at Min. Voltage	5.1 A
Number of Reeves	2
Body Material	Aluminum
Duty Classification	H4
Resistance Properties	Corrosion Resistant
Clutch Type	Friction
Overload Protection Included	Yes
Motor Horsepower	1 1/4 hp
Number of Load Chains	1
Includes Clutch	Clutch Included
Chain Material	Alloy Steel
Brake Type	DC Current
Lifting Hook Type	Swivel Hook with Safety Latch
Current at Max. Voltage	1.7 A
Headroom	27 3/16 in
Programmable	Programmable by VFD
Included Components	Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Rubber Bumpers, Safety Latch Hook
Hoist IP Rating	IP55
Trolley Wheel Material	Steel
Body Finish	Enamel
Lifting Hook Material	Carbon Steel
Chain Finish	Nickel Plated
Maximum Lift Speed	7 fpm
Operating Voltage	230V AC
