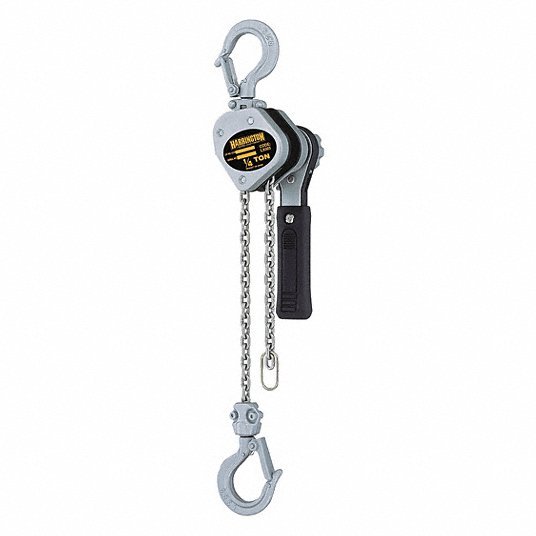

Harrington LX003-10 Lever Chain Hoist Hook Mounted No Trolley, 500 lb Lifting Capacity, 10 ft Lift Lg

Lever Chain Hoist, Chain Length 11 ft, For Minimum Beam Flange Width Not Applicable, For Maximum Beam Flange Width Not Applicable, Headroom 8 3/32 in, Includes Brake Brake Included, Lifting Hook Type Hook with Safety Latch, Maximum Lifting Capacity 500 lb, Maximum Lifting Length 10 ft, Mount Type Hook Mounted - No Trolley, Body Depth 3 13/32 in, Body Material Die-Cast Aluminum, Body Width 2 29/32 in, Brake Type Weston Style, Chain Grade Grade 100, Chain Material Nickel Plated, Color Silver

Load Capacity	500 lb
Hoist Lift	10 ft
Includes	Load Chain
Hook Opening	51/64 in
Chain	Nickel Plated
Standards	ANSI/ASME B30.21, ANSI/ASME HST-3M
Hoist Mount	Hook Mounted - No Trolley
Hoist Overload Protection	No
Pull to Lift Rated Load	40 lb
Min. Between Hooks	8 in
Brake	Weston Style Load Brake
Finish	Electrostatic Enamel
Mount Type	Hook Mounted - No Trolley
Trolley Configuration	Hook Mounted - No Trolley
Reeving	1
Features	Quick Free-Chain and Hook Positioning, Aluminum Body and Steel Frame
Color	Silver
Maximum Lifting Capacity	500 lb
Brake Type	Weston Style
Includes Brake	Brake Included
Body Finish	Electrostatic Enamel
Headroom	8 3/32 in
Maximum Pulling Capacity	500 lb
Power Source	Lever
Operating Position	Horizontal, Vertical
Chain Grade	Grade 100
Includes Clutch	Clutch Not Included
Number of Reeves	1
Lifting Hook Type	Hook with Safety Latch
Number of Load Chains	1
Chain Material	Nickel Plated
Resistance Properties	Abrasion Resistant, Corrosion Resistant, Dirt Resistant, Dust Resistant, Rain Resistant
Lifting Hook Material	Carbon Steel
Included Components	Safety Latch Hooks
Chain Finish	Nickel Plated
Body Material	Die-Cast Aluminum
Overload Protection Included	No
