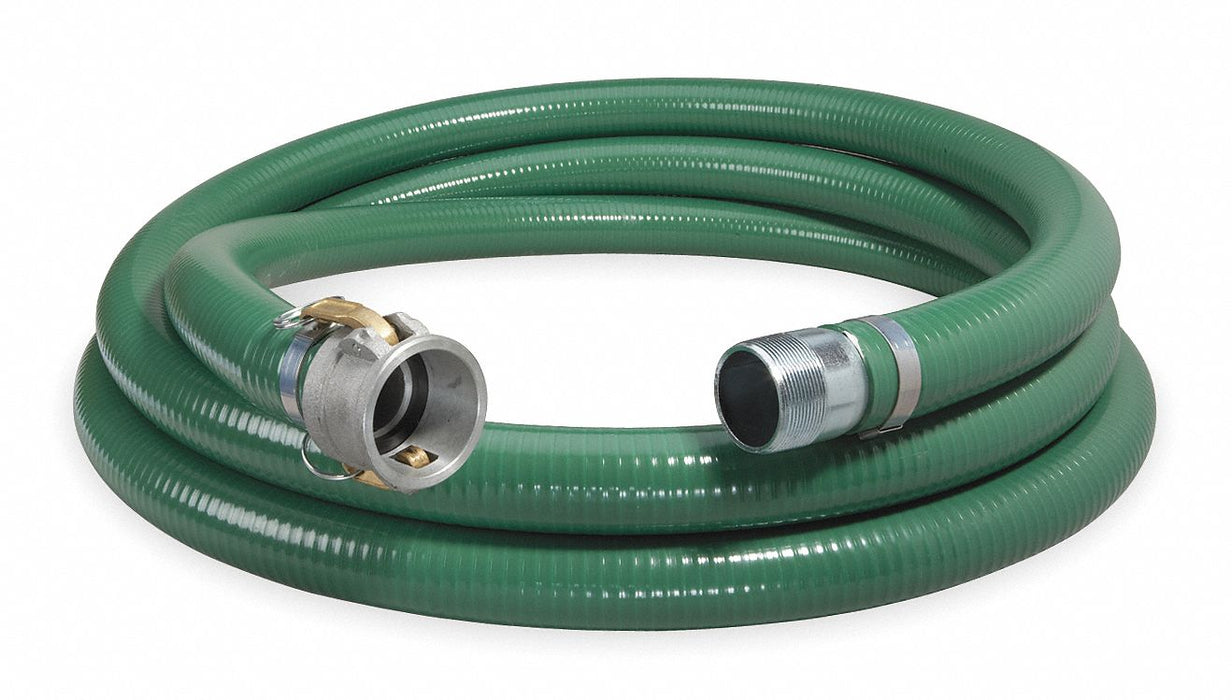

Alliance Hose & Rubber SP400-20CN-G Water Suction and Discharge Hose

Alliance SP400-20CN-G Water Suction and Discharge Hose, 4 in Hose Inside Dia., 55 psi, Green, 4 in x 4 in Fitting Size

UPC: | Harmonization / Schedule B : 3917.32.0010

Country of Origin: United States | Shipping Weight: 48.98 lbs

$638.26 - $638.26
$638.26
$638.26 - $638.26
$638.26

Water Suction and Discharge Hose, Hose Inside Dia. 4 in, Hose Length 20 ft, Hose Color Green, Hose Tube Material PVC, Hose Cover Material PVC, Max. Working Pressure @ 70 F 55 psi, Temp. Range 0 Degrees to 158 Degrees F, Bend Radius 16 in, Hose Fitting A Size 4 in, Hose Fitting B Size 4 in, Hose Fitting A Material Aluminum, Hose Fitting B Material Carbon Steel, Hose Fitting A Type Cam and Groove C, Hose Fitting B Type MNPT, Hose Configuration Coupled Assembly, Vacuum Rating 29 in Hg

Tube Material PVC
Max. Pressure 55 psi
Color Green
Fitting Type Cam and Groove C x MNPT
Reinforcement Rigid PVC Helix
Vacuum Rating 29 in Hg
Max. Temp. 150 Degrees F
Includes Gasket
Fittings Alum. (F) Camlock x Steel (M)NPT
Hose Fitting B Material Carbon Steel
Hose Fitting A Material Aluminum
Hose Cover Material PVC
Temp. Range 0 Degrees to 158 Degrees F
Hose Fittings Aluminum 4 in Cam and Groove C x Carbon Steel 4 in MNPT
Hose Configuration Coupled Assembly
Hose Fitting B Type MNPT
Hose Tube Material PVC
Hose Fitting A Type Cam and Groove C
Max. Working Pressure @ 70 F 55 psi
Hose Color Green
Water Hose Type Water Suction and Discharge Hose
Fitting Material Aluminum x Carbon Steel
For Media Type Water
Compatible Chemicals Deionized Water, Fresh Water, Salt Water
