McMaster 8802A11 96-Piece Inch Size Black-Oxide High-Speed Steel Drill Bit Set

Name: McMaster 8802A11 96-Piece Inch Size Black-Oxide High-Speed Steel Drill Bit Set
Brand: McMaster-Carr
Price: 575.31 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 8207.50.2080

Country of Origin: United States | Shipping Weight: 8.15 lbs

$575.31 - $575.31

$575.31

$575.31 - $575.31

$575.31

Our basic drill bits are also the most versatile. Cut holes in a variety of metals, from the softest aluminum to the hardest steel.

Jobbers' Length—These bits have the balance of rigidity and length needed for most applications.

Black Oxide—The dark finish increases wear resistance and reduces friction to improve chip flow, so these bits can last 50% longer than uncoated bits.

Material	High-Speed Steel
Length Class	Jobbers
Finish	Black Oxide
Number of Pieces	96

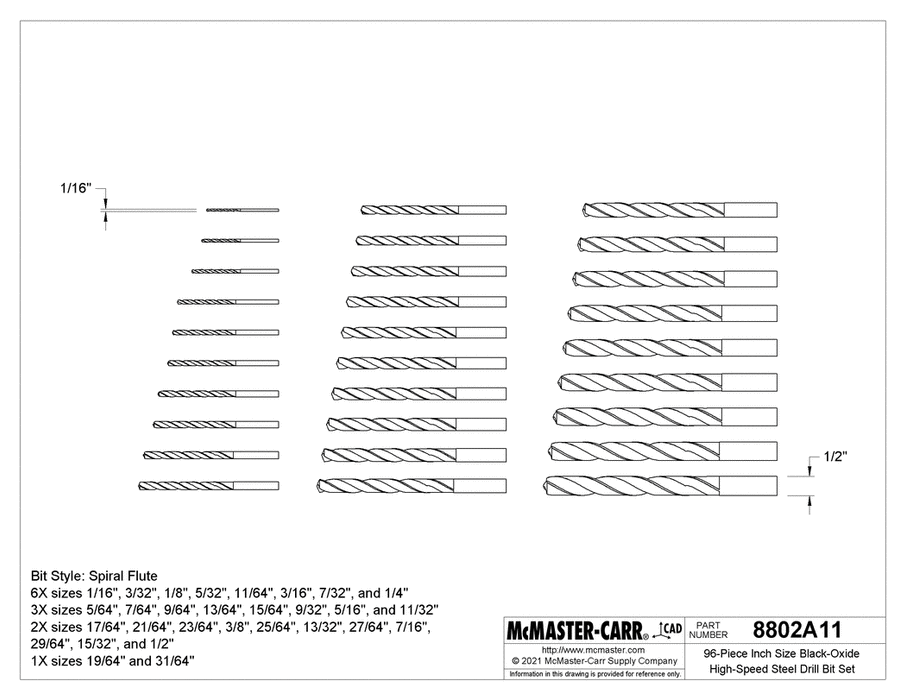

Drill Bit Sizes Included	6 each of sizes 1/16", 3/32", 1/8", 5/32", 11/64", 3/16", 7/32", and 1/4", 3 each of sizes 5/64", 7/64", 9/64", 13/64", 15/64", 9/32", 5/16", and 11/32", 2 each of sizes 17/64", 21/64", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", and 1/2", 1 each of sizes 19/64" and 31/64"
System of Measurement	Inch
Drill Bit Point Style	Split Point
Specifications Met	NAS907 Type B
Container Type	Metal Drawer Cabinet
Bit Style	Fluted
Container Height	7 3/4"
Container Length	14 5/8"
Container Width	7 3/8"
Shank Type	Round
Drill Bit Size	1/8", 3/16", 1/4", 5/16", 3/8", 1/2"
Flute Direction	Right Hand
Flute Type	Spiral
For Use On	Iron, Stainless Steel, Steel
Number of Flutes	2
Point Angle	135°
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	820750.2080
