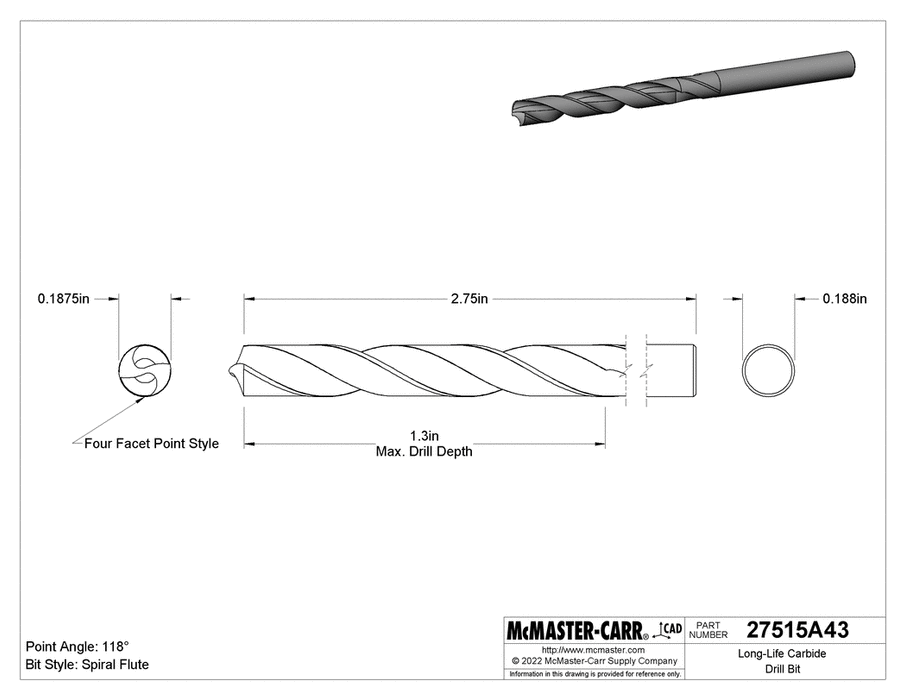

McMaster 27515A43 Long-Life Carbide Drill Bit, 3/16" Size
UPC: | Harmonization / Schedule B : 8207.50.4030
Country of Origin: United States | Shipping Weight: 0.01 lbs
UPC: | Harmonization / Schedule B : 8207.50.4030
Country of Origin: United States | Shipping Weight: 0.01 lbs
The hardest and most wear-resistant drill bits you can buy. Carbide bits stay sharp at high temperatures and faster speeds for the best performance on hard and difficult-to-machine materials. They last 10 to 20 times longer than their closest alternative, cobalt steel. Carbide can be brittle, however, so these bits require a rigid machine tool holder to prevent breakage and should not be used in hand drilling applications.
Jobbers' Length—These bits have the balance of rigidity and length needed for most applications.
Titanium Nitride (TiN) Coated—Drill at higher speeds and last longer than uncoated bits, especially on materials like hardened steel, iron, and stainless steel.
|
Material
|
Carbide |
|
Length Class
|
Jobbers |
|
Drill Bit Size
|
3/16" |
|
Decimal Size Equivalent
|
0.1875" |
|
Overall Length
|
2 3/4" |
|
Maximum Drilling Depth
|
1.3" |
|
Shank
|
|
|
Size
|
3/16" |
|
Type
|
Round |
|
Drill Bit Point Type
|
Four Facet |
|
Bit Style
|
Fluted |
|
Finish
|
Titanium Nitride (TiN) Coated |
|
Flute Direction
|
Right Hand |
|
Flute Type
|
Spiral |
|
For Use On
|
Fiberglass, Iron, Nickel, Stainless Steel, Steel, Titanium, Tool Steel, Hardened Steel |
|
Number of Flutes
|
2 |
|
Point Angle
|
118° |
|
System of Measurement
|
Inch |
|
Country of Origin
|
United States |
|
DFARS Compliance
|
Specialty Metals COTS-Exempt |
|
Export Control Classification Number (ECCN)
|
EAR99 |
|
REACH Compliance
|
Not Compliant |
|
RoHS Compliance
|
RoHS 3 (2015/863/EU) Compliant |
|
Schedule B Number
|
820750.4030 |
