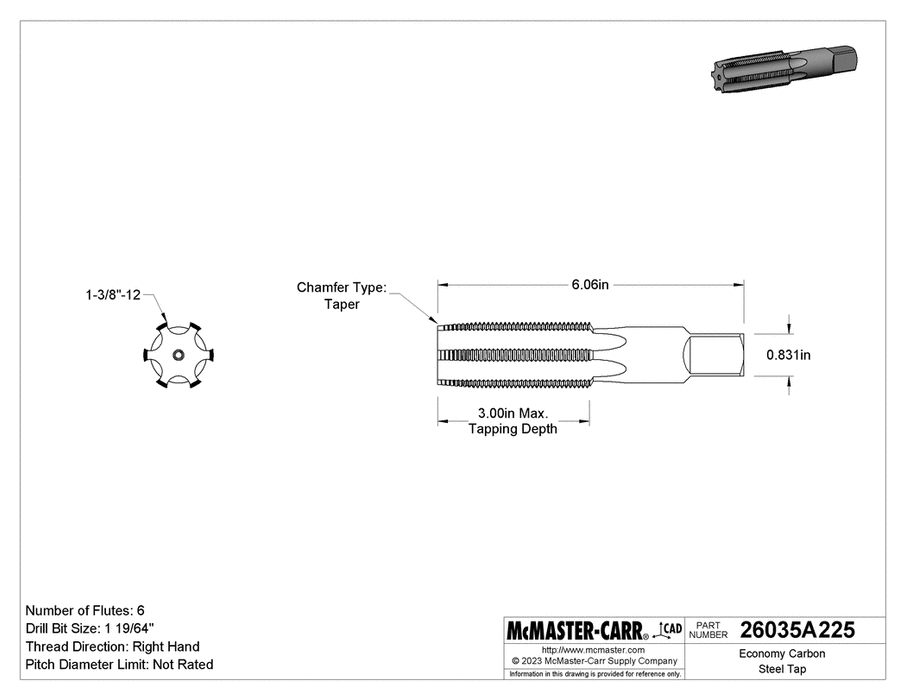

McMaster 26035A225 Carbon Steel Tap Taper Chamfer, 1-3/8"-12 Thread Size, 3" Thread Length
UPC: | Harmonization / Schedule B : 8207.40.0000
Country of Origin: United States | Shipping Weight: 1.55 lbs
UPC: | Harmonization / Schedule B : 8207.40.0000
Country of Origin: United States | Shipping Weight: 1.55 lbs
Cut threads into holes so screws, bolts, and rods fit snugly. Our basic taps have straight flutes that are good for most jobs.
Carbon Steel—The economical choice for occasional hand tapping. These work on most metals and plastic but will dull more quickly than other taps.

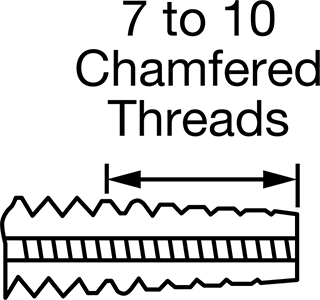

Taper Chamfer—Good for both starting holes and threading through holes. These taps have the longest taper to gradually engage with the material, reducing the force needed to turn them. They can't reach the bottom of blind holes, however, so you will likely need to finish with a bottoming-chamfer tap.
Number of Flutes—Taps with fewer flutes have more space to capture chips, so you won’t have to clear them as often. However, they can be more difficult to keep straight in the hole.
For Threading
|
Fastener Threads |
Thread Direction
|
Right Hand |
Material
|
Carbon Steel |
Finish
|
Uncoated |
Chamfer Type
|
Taper |
Thread
|
|
Size
|
1 3/8"-12 |
Length
|
3" |
Overall Length
|
6 1/16" |
Thread Type
|
UNF |
Number of Flutes
|
6 |
Drill Bit
|
|
Size
|
1 19/64" |
Decimal Equivalent
|
1.2969" |
Shank Type
|
Square |
Flute Type
|
Straight |
For Use On
|
Aluminum, Brass, Bronze, Copper, Iron, Nickel, Plastic, Stainless Steel, Steel |
Maximum Tapping Depth
|
3" |
Number of Tapping Ends
|
1 |
Country of Origin
|
United States |
DFARS Compliance
|
Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN)
|
EAR99 |
REACH Compliance
|
Not Compliant |
RoHS Compliance
|
RoHS 3 (2015/863/EU) Compliant |
Schedule B Number
|
820740.0000 |
U.S.–Mexico–Canada Agreement (USMCA)
|
