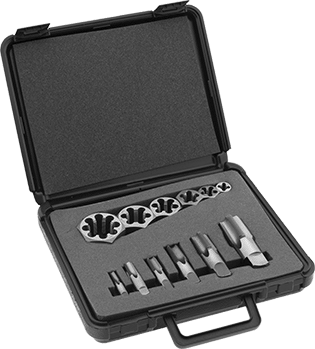

McMaster 2549A78 12-Piece Tap and Die Kit High-Speed Steel Tap and Carbon Steel Hex Die Kit
UPC: | Harmonization / Schedule B : 8207.40.0000
Country of Origin: United States | Shipping Weight: 9.585 lbs
UPC: | Harmonization / Schedule B : 8207.40.0000
Country of Origin: United States | Shipping Weight: 9.585 lbs
Use a single kit for many sizes of internal and external threads. The taps and dies are for use on most metal and plastic.
High-Speed Steel—High-speed steel taps and dies last longer than carbon steel when used on similar material.
Taper Chamfer—Taper-chamfer taps have 7-10 chamfered threads at the tip for cutting into the workpiece. They require less torque than other chamfer types, making them a good choice for starting threads and tapping through holes. However, a longer taper means that they cannot thread as close to the bottom of closed-end holes.
Hex—Hex-shaped dies are for thread repair and can be used with conventional wrenches.
|
Tap and Die Material
|
High-Speed Steel Taps and Carbon Steel Dies |
|
Thread Direction
|
Right Hand |
|
Number of Pieces
|
12 |
|
Tap Sizes Included
|
1/8, 1/4, 3/8, 1/2, 3/4, 1 |
|
Tap Chamfer Type
|
Taper |
|
Die Shape
|
Hex |
|
Die Sizes Included
|
1/8"-27, 1/4"-18, 3/8"-18, 1/2"-13, 3/4"-14, 1"-11 1/2 |
|
Width
|
25/32", 1 1/16", 1 1/4", 1 5/8", 1 13/16", 2 3/16" |
|
Container Type
|
Plastic Case |
|
Tap Application
|
Through-Hole Threading, Closed-End Hole Threading |
|
Finish
|
Uncoated |
|
Tap Flute Type
|
Straight |
|
For Use On
|
Aluminum, Brass, Bronze, Copper, Iron, Nickel, Plastic, Stainless Steel, Steel |
|
Number of Dies
|
6 |
|
Number of Tapping Ends
|
1 |
|
Number of Taps
|
6 |
|
Pipe Size
|
1/8, 1/4, 3/8, 1/2, 3/4, 1 |
|
Shank Type
|
Square |
|
Sold As
|
Kit |
|
Thread Type
|
NPT |
|
Country of Origin
|
United States |
|
DFARS Compliance
|
Specialty Metals COTS-Exempt |
|
ECCN
|
EAR99 |
|
REACH Compliance
|
REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
|
RoHS Compliance
|
RoHS 3 (2015/863/EU) Compliant |
|
Schedule B Number
|
820740.0000 |
|
USMCA Qualifying
|
No |
