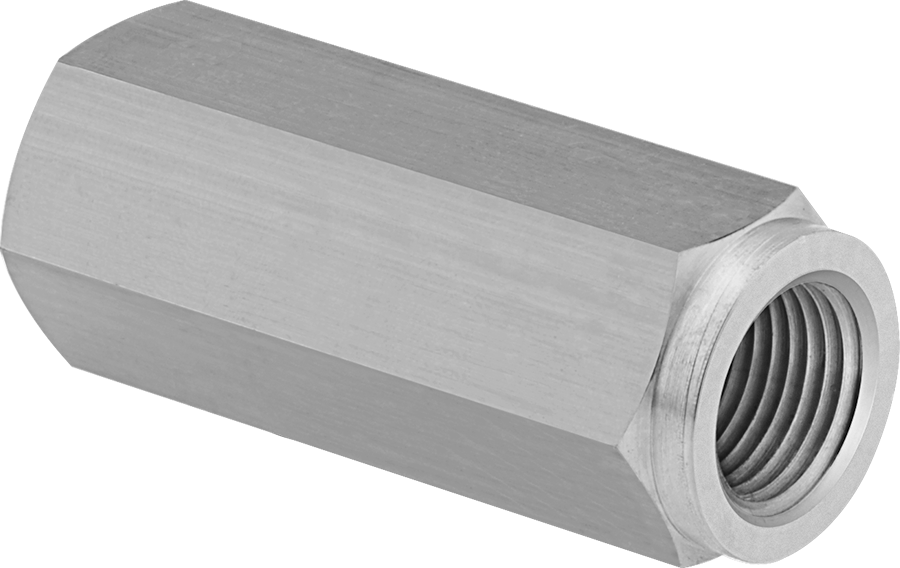

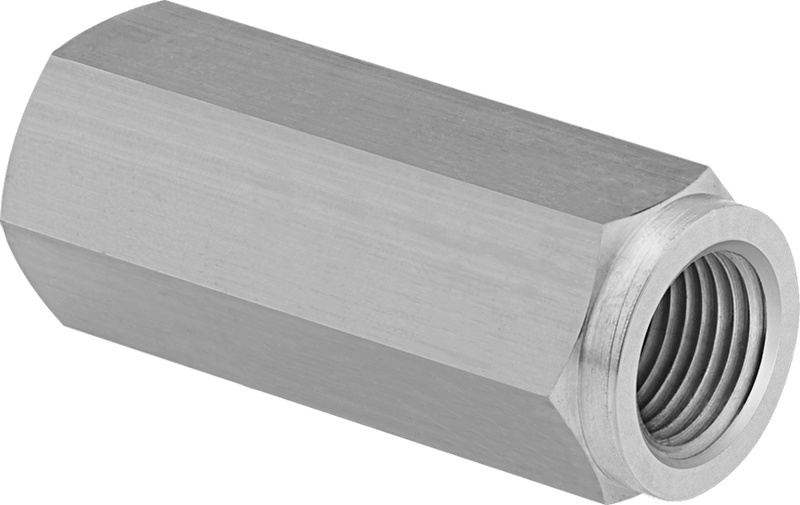

McMaster 4620K24 Inline Hydraulic Check Valve, 3/4 NPTF Female Inlet, Brass Body, 20 gpm Maximum Flow Rate

McMaster 4620K24 Inline Hydraulic Check Valve, 3/4 NPTF Female Inlet, Brass Body, 20 gpm Maximum Flow Rate

UPC: | Harmonization / Schedule B : 8481.30.1090

Country of Origin: United States | Shipping Weight: 1 lbs

$180.47 - $180.47
$180.47
$180.47 - $180.47
$180.47

Hydraulic check valves open to allow flow in one direction and close when flow stops or reverses.

NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

Brass Body—Brass valves have good corrosion resistance.

Inlet Connection
Pipe Size 3/4
Thread Type NPTF
Gender Female
Dash Size 12
Number of Ports 1
Outlet Connection
Pipe Size 3/4
Thread Type NPTF
Gender Female
Dash Size 12
Number of Ports 1
Check Valve Type Ball
Body Material Brass
Maximum Flow Rate 20 gpm
Flow Coefficient (Cv) 5.41
Maximum Pressure 2,000 psi
Minimum Opening Pressure 2.5 psi
Port-to-Port Length 3 1/4"
Hex Width 1 3/8"
Mounting Position Any Angle
Temperature Range -30° F to 200° F
Actuation Pressure
For Use With Hydraulic Fluid
Return Actuation Spring
Total Number of Ports 2
Valve Function Backflow Prevention
Valve Type Check
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant with Exemptions
RoHS Exemptions 6(c)
Schedule B Number 848130.1090
USMCA Qualifying No
