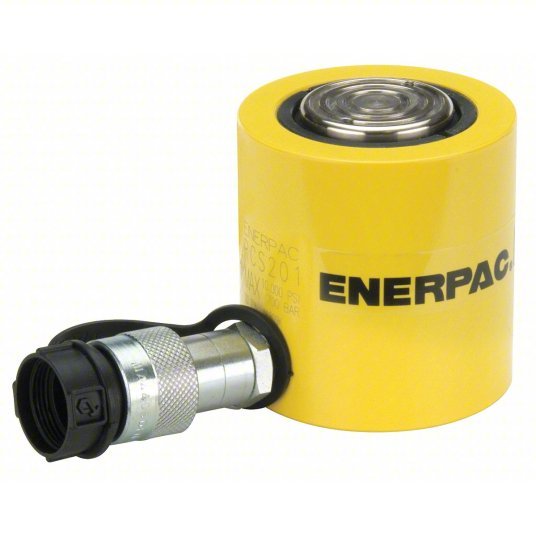

Enerpac RCS201 Hydraulic Ram Single Acting, 20 ton Nominal Capacity, 5/8 in Nominal Stroke Lg, Steel

Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 20 ton, Max. Push Capacity 20 ton, Stroke Length 1 3/4 in, Nominal Stroke Length 5/8 in, Effective Push Area 4.43 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 7.75 cu in, Retracted Height 3.88 in, Extended Height 5.63 in, Outside Dia. 3.63 in, Plunger Dia. 2 in, Plunger Thread Size M4, Base Bolt Circle Dia. 1.56 in, Center Hole Dia. 2 in, Series RCS, Includes Dust Cap, Female Coupler

Effective Area	4.43 sq. in.
Oil Capacity	7.75 cu. in.
Max. Pressure	10,000 psi
Single Acting/Double Acting	Single Acting
Weight Capacity	20 tons
Handle	No
Body Material	Steel
Cylinder Type	General Purpose
Includes	Dust Cap, Female Coupler
Item	Hydraulic Ram
Max. Push Capacity	20 ton
Nominal Capacity	20 ton
Effective Push Area	4.43 sq in
Oil Capacity Push	7.75 cu in
Series	RCS
Finish	Paint
Type	Low Height
