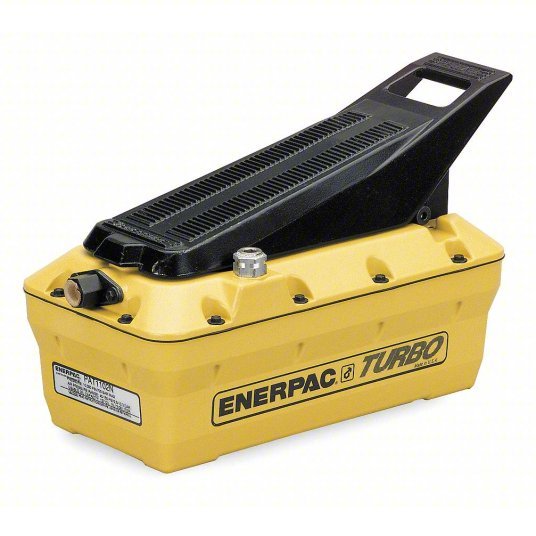

Enerpac PATG1102N Hydraulic Pump 10,000 psi Max. Op Pressure, 127 cu in Reservoir Capacity, Foot/Hand

Hydraulic Pump, Reservoir Capacity 127 cu in, Air Intake Pressure - Maximum 125 psi, Air Intake Connection Size 1/4 in, Operating Pressure - Maximum 10,000 psi, Displacement @ 10,000 PSI 10 cu in/min, Sound Level - Maximum 76 dBA, Control Valve Type 3-Position, 3-Way, Actuation Type Foot, Hand, Air Consumption - Maximum 12 scfm, Air Intake Connection Type FNPT, Control Valve Function Advance, Hold, Retract, Displacement @ No Load 60 cu in/min

Oil Capacity (Cu.-In.)	127 cu in
Reservoir Capacity (Gal.)	0.54 gal
Oil Displacement @ 0 PSI	60.00 cu in/min
Oil Displacement @ 10,000 PSI	10 cu in/min
Operating Air PSI	40 to 125
Air Consumption (SCFM)	12
Actuation Type	Foot, Hand
Includes	Air and Hydraulic Inlet Filter, Air Exhaust Muffler
dBA	76
Features	Ergonomic Design, Pedal Lock Function, Pressure Relief Valve
Air Inlet NPT (In.)	1/4
Fluid Port NPT (In.)	3/8
Built-In	Internal Pressure Relief Valve
Treadle	Three Position
Type	Air Powered
Capacity (PSI)	10,000
Reservoir Capacity	127 cu in
Displacement @ No Load	60 cu in/min
Control Valve Function	Advance, Hold, Retract
Sound Level - Maximum	76 dBA
Treadle Design	Three Position
Air Intake Pressure - Maximum	125 psi
Air Consumption - Maximum	12 scfm
Control Valve Type	3-Position, 3-Way
Flow Rate - Maximum	10 cu in/min
Air Intake Connection Type	FNPT
Operating Pressure - Maximum	10,000 psi
