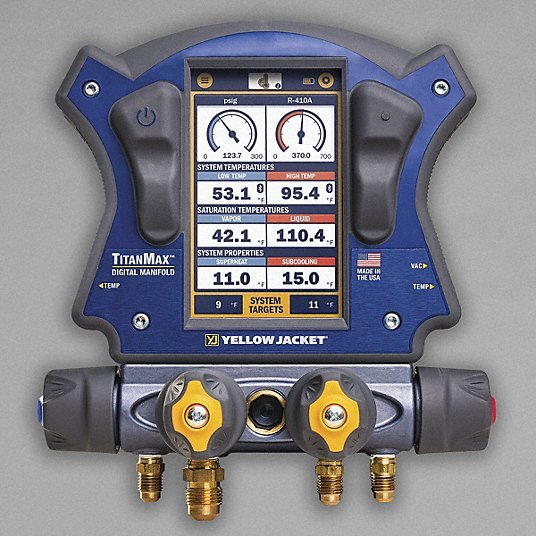

Yellow Jacket 40881 Manifold Gauge 4 Valves, Series TITANMAX™, YJACK VIEW®

UPC: 686800408811 | Harmonization / Schedule B : 9026.20.4000

Country of Origin: United States | Shipping Weight: 4.4 lbs

Original price $1,173.59 - Original price $1,173.59
Original price
$1,173.59
$1,173.59 - $1,173.59
Current price $1,173.59
Manifold Gauge, Number of Valves 4, Not Applicable, Includes (2) Titan Clamp Probes, Hoses, Vacuum Gauge
Product Type Manifold Gauge Set
Series TITANMAX(TM)
Number of Valves 4

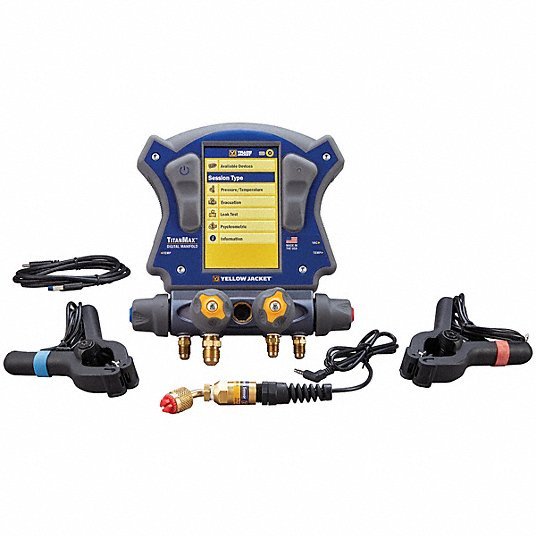

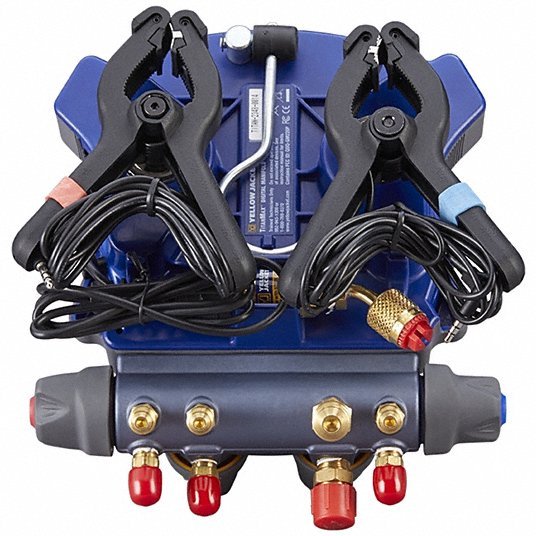

Includes (2) Titan Clamp Probes, Hoses, Vacuum Gauge
Includes Batteries Batteries Included
Battery Type Lithium Ion
Power Source Battery
Automatic Shut-Off Time 3.5 hr
A2L Compatibility A2L Compatible
Calibration Certificate Type Not Certified
Accuracy +/-1%
Adjustment Method Knob
Response Time Adjustable
Display Type Digital
Display Illumination Backlit
Display Location App-Based
Gauge Type High Side/Low Side
Pressure Units Measured bar, Pa, psi, psig
Temperature Units Measured Degrees F
Pressure Resolution 0.1 psi, 1 kPa, 0.1 bar
Temperature Resolution 0.1 Degrees F
Low Side Display Pressure - Minimum 0 psi
Low Side Display Pressure - Maximum 740 psi
High Side Display Pressure - Minimum 0 psi
High Side Display Pressure - Maximum 740 psi
Operating Temperature - Minimum -4 Degrees F
Operating Temperature - Maximum 140 Degrees F
IP Rating IP52
Body Material Plastic
Manifold Port Connection Type SAE
Manifold Port Connection Gender Male
Manifold Port Connection Thread Direction Right-Hand
Hose Connection Thread Direction Right-Hand
Vacuum Port Connection Type SAE
Vacuum Port Connection Gender Male
Vacuum Port Connection Thread Direction Right-Hand
Includes Vacuum Port Vacuum Port Included
Includes Sightglass Sightglass Included
App Compatibility YJACK VIEW(R)
For Operating System Android(TM), iOS(R)
Warranty 2 yr
For Refrigerant Type R-11, R-113, R-114, R-115, R-116, R-12, R-123, R-1233ZD, R-1234YF, R-1234ZE, R-124, R-125, R-1270, R-13, R-134A, R-141B, R-142B, R-143A, R-152A, R-21, R-218, R-22, R-227EA, R-23, R-236FA, R-245FA, R-290, R-32, R-401A, R-401B, R-401C, R-402A, R-402B, R-403A, R-403B, R-404A, R-405A, R-406A, R-407A, R-407B, R-407C, R-407D, R-407E, R-407F, R-407H, R-408A, R-409A, R-409B, R-41, R-410A, R-410B, R-411A, R-411B, R-412A, R-413A, R-414A, R-414B, R-416A, R-417A, R-417B, R-417C, R-418A, R-419A, R-419B, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-422E, R-423A, R-424A, R-425A, R-426A, R-427A, R-428A, R-434A, R-437A, R-438A, R-439A, R-440A, R-441A, R-442A, R-443A, R-444B, R-445A, R-446A, R-447A, R-448A, R-449A, R-449B, R-450A, R-452A, R-452B, R-453A, R-454A, R-454B, R-454C, R-455A, R-457A, R-471A, R-500, R-501, R-502, R-503, R-504, R-507, R-507A, R-508A, R-508B, R-509A, R-511A, R-513A, R-514A, R-515A, R-515B, R-600, R-600A, R-601, R-601A
