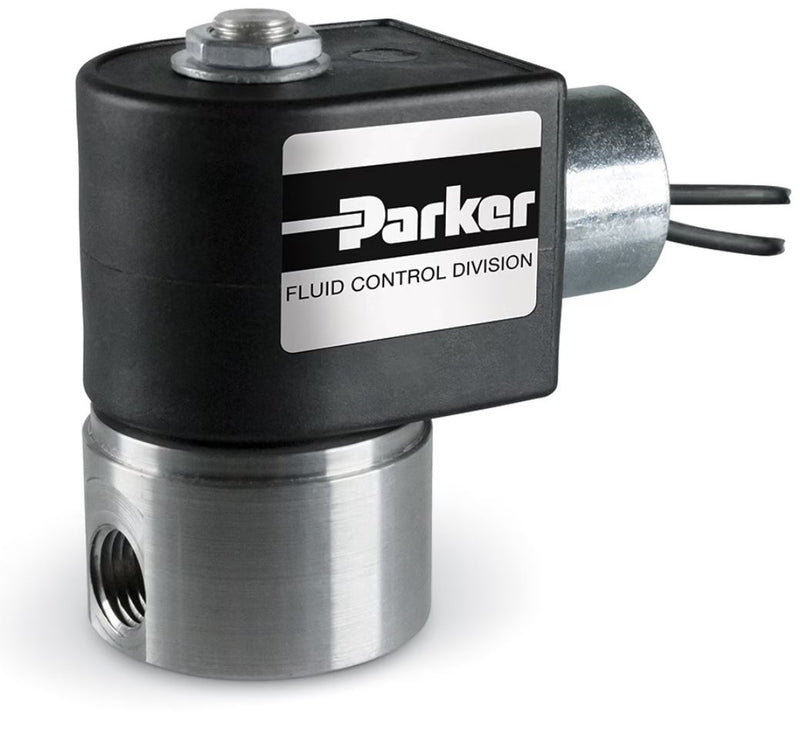

Parker 71215SN2MN00N0C111C1 2-Way Stainless Steel Valve 1/4 Inch

Parker 71215SN2MN00N0C111C1 2-Way Stainless Steel Valve 1/4 Inch

UPC: | Harmonization / Schedule B : 8481.80

Country of Origin: | Shipping Weight: 1.2 lbs

$238.45 - $238.45
$238.45
$238.45 - $238.45
$238.45

Parker's 2-Way Normally Closed 1/4 NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in stainless steel and brass construction. Coil options are available in 1/2 NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Leadtime: 45 Days ARO

Orifice 1 Size 1/8 inch
Port Size 1/4 inch
Number of Ports 2
Valve Type 2-Way
Power Consumption 10 W (DC)
Body Material Stainless Steel
Actuation Type Direct Acting
Function Normally Closed (NC)
Coil Type 1/2" Conduit, 18" Leads
Product Series 7000 Series
Coil Specifications Met NEMA 4X
Port Type NPT
Seal Material NBR
Maximum Fluid Temperature 185 °F
Division Fluid Control Division
Minimum Pressure Differential 0 psi
Weight 1.2 LB
Flow Coefficient 1 0.28 Cv
Maximum Pressure Differential 150 psi (DC)
Minimum Fluid Temperature 0 °F
Media Liquids and Gases
Input Voltage 12.0 VDC
UOM EACH
