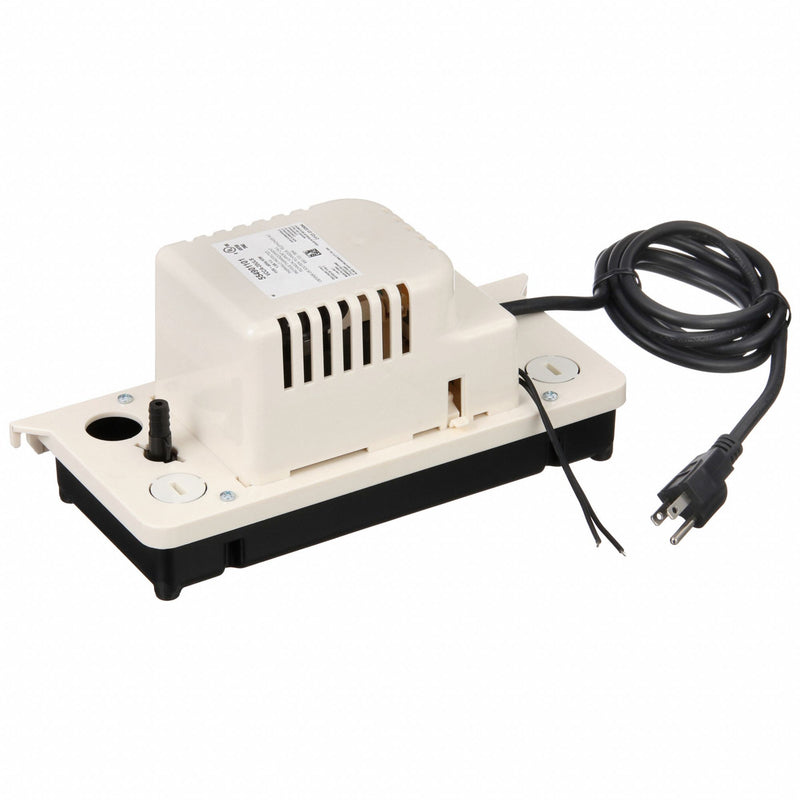

Little Giant 554201101 Condensate Removal Pump

Little Giant 554201101 Condensate Removal Pump, 115V AC, 7/16 gal Tank, 1/16 hp, 1.33 gpm, 20 ft Max Head

UPC: 029753005780 | Harmonization / Schedule B : 8413.70.2090

Country of Origin: China | Shipping Weight: 5.4 lbs

$139.82 - $139.82
$139.82
$139.82 - $139.82
$139.82

Low-profile and slim condensate tank pumps are smaller than other condensate pumps and fit into cooling systems with limited vertical clearance for gravity-assisted drainage and removing condensation.

Series VCCA-20ULS
Pump Type Low Profile Condensate Removal Pump
Compatible Media Type Clear Water
Power Source Corded Electric
Phase Single
Nameplate Voltage 115V AC
HP 1/16 hp
Full Load Current 1.5 A
Frequency 60 Hz
Tank Material Plastic
Body Gasket Material Stainless Steel
Float Material Polypropylene
Max Flow Rate @ 1 ft Head 1.33 gpm
Max Flow Rate @ 5 ft Head 1.17 gpm
Max Flow Rate @ 10 ft Head 0.75 gpm
Max Flow Rate @ 15 ft Head 0.42 gpm
Max. Head 20 ft
Max Operating Pressure 8.6 psi
Media Temp. Range 33 to 120 °F
Tank Capacity 7/16 gal
Number of Intakes 3
Intake 3/4 in Open
Discharge 3/8 in Barbed
Pump Activation Type Float Switch
Includes Safety Switch Safety Switch Included
Turn On Level 1.06 in
Shut Off Level 0.45 in
Cord Length 6 ft
For HVAC System Duct Ducted
Plenum Rated No
Standards cULus
Application Condensate Removal
Pump Technology Centrifugal
Manufacturer Warranty 1 yr
