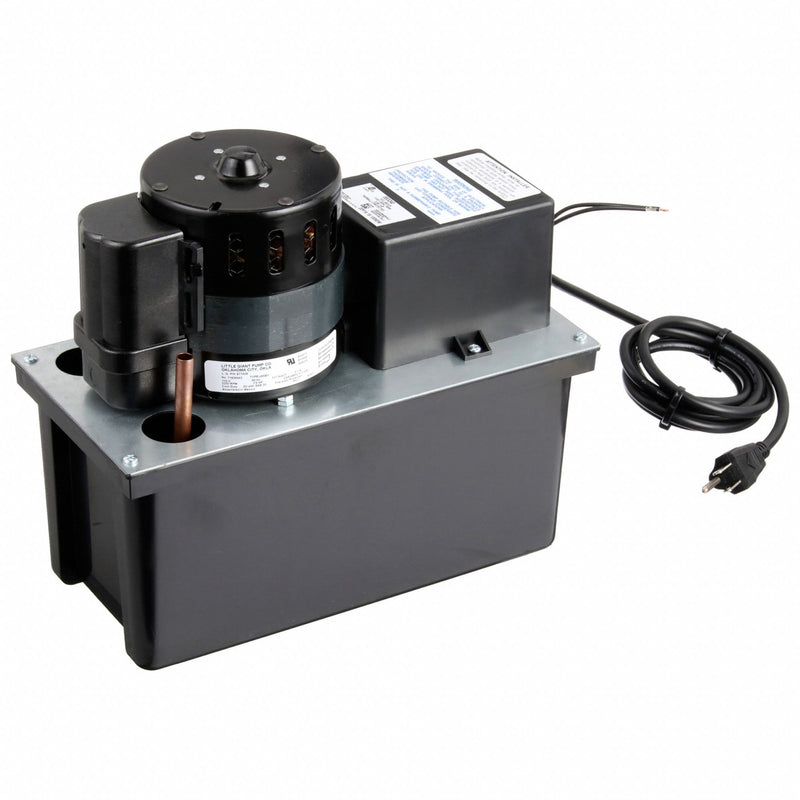

Little Giant 553240 Condensate Removal Pump 1 gal Tank

Little Giant 553240 Condensate Removal Pump, 115V AC, 1 gal Tank, 1/5 hp, 7.5 gpm, 45 ft Max Head

UPC: | Harmonization / Schedule B : 8413.70.2090

Country of Origin: Mexico | Shipping Weight: 12.35 lbs

$573.97 - $573.97
$573.97
$573.97 - $573.97
$573.97

High-capacity condensate tank pumps are designed for commercial applications and provide higher flow rates than standard condensate pumps. They have an integrated tank that collects and holds moisture. When the tank is full, the pump turns on to drain it. This collection, storage, and drainage process reduces the overall run time of the condensate pump, lessening wear and tear and increasing its lifespan.

Series VCL-45ULS
Pump Type Condensate Removal Pump
Compatible Media Type Clear Water
Power Source Corded Electric
Phase Single
Nameplate Voltage 115V AC
HP 1/5 hp
Full Load Current 0.8 A
Frequency 60 Hz
Pump Housing Material Plastic
Tank Material Plastic
Body Gasket Material Stainless Steel
Float Material Polypropylene
Max Flow Rate @ 1 ft Head 7.5 gpm
Max Flow Rate @ 10 ft Head 6.9 gpm
Max Flow Rate @ 20 ft Head 5.33 gpm
Max Flow Rate @ 30 ft Head 3.5 gpm
Max Flow Rate @ 40 ft Head 1.33 gpm
Max. Head 45 ft
Max Operating Pressure 19.5 psi
Media Temp. Range 33 to 110 °F
Tank Capacity 1 gal
Number of Intakes 1
Intake 1-1/8 in Open
Discharge 3/8 in Barbed
Pump Activation Type Float Switch
Includes Safety Switch Yes
Cord Length 6 ft
For HVAC System Duct Ducted
Standards cCSAus
Pump Technology Centrifugal
Priming Self-Priming
Manufacturer Warranty 1 yr
