| Voltage |
18/30VAC |
| Stages Heat |
1 |
| Color |
White |
| Control Range |
45 Degrees F to 90 Degrees F |
| System Switching |
Heat-Cool-Off |
| Stages Cool |
1 |
| Dual Transformer Compatible |
Yes |
| Power Method |
Dual |
| 750mV Compatible |
No |
| Fan Switching |
Auto-On |
| Dehumidification Control |
No |
| Humidification Control |
No |
| Occupancy Sensor |
No |
| Filter Indicator |
No |
| Low Battery Indicator |
No |
| Terminal Designations |
RC,RH,C,W,Y,O,B,G |
| Temporary Program Override |
No |
| Temporary Temperature Hold |
No |
| For Use With |
Heating and Cooling |
| Programmable Fan |
No |
| Key Pad Lockout |
Yes |
| Features |
Keypad Lockout, Freeze Protection, 4 or 5 Wire Compatible, Field Adjustable Calibration, East Access Terminal Block, Permanent Memory, ICM Patented Thermal Intrusion Barrier |
| Automatic Changeover |
No |
| Display |
Digital |
| Battery Backup |
Yes |
| Batteries Included |
Yes |
| Temperature Limiting |
No |
| Includes |

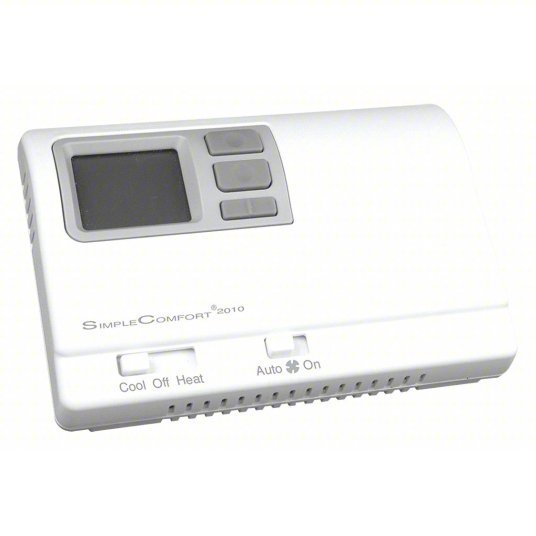

Operation and Application Guide, SC2010L Thermostat on Base, Cover |
| Control Type |
Slide Switch |
| Programming Capability |
Not Programmable |
| Number of Cooling Stages - Conventional System |
1 |
| Changeover Type |
Manual |
| Mounting Direction |
Horizontal |
| Thermostat Type |
Low Voltage |
| Application |
Heat and Cool |
| Compatible System Type |
Heat and Cool |
| Number of Heating Stages - Conventional System |
1 |
| Electrical Connection Type |
Hardwired |
| Temperature Sensitivity |
+/-1 Degrees F |
| Battery Type |
(2) AAA Batteries |
| Temperature Control Range |
45 Degrees to 90 Degrees F |
| System/Fan Settings |
Cool-Heat-Off/Auto-On |
| System Settings |
Cool-Heat-Off |
| Fan Settings |
Auto, On |
| Millivolt Compatible |
No |
