Honeywell TP970A2004 Pneumatic Thermostat, Single Temperature, Heating, 2 Pipe, Vertical - KVM Tools Inc.KV3UC87

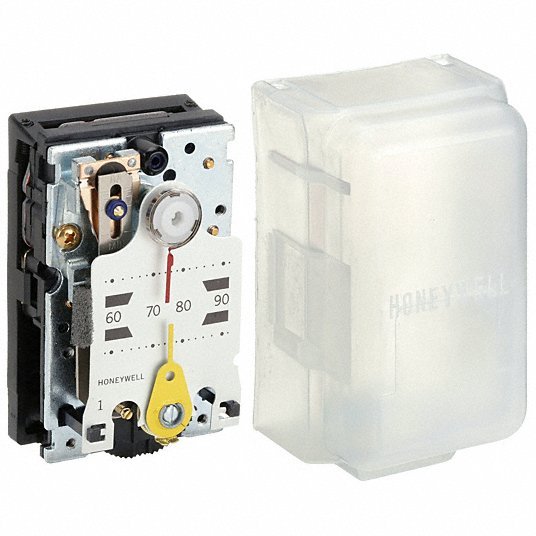

Honeywell TP970A2004 Pneumatic Thermostat, Single Temperature, Heating, 2 Pipe, Vertical

UPC: 085267101479 | Harmonization / Schedule B : 9032.10.0060

Country of Origin: United States | Shipping Weight: 0.35 lbs

$398.33 - $398.33
$398.33
$398.33 - $398.33
$398.33

Pneumatic Thermostat, Direct Acting, 2 Pipe, Heating, Single Temperature, Air Connections 1/8 in, Element Type Bi-Metal, Max. Air Pressure 25 psi, Max. Ambient Temp. 100 Degrees F, Mounting Style Vertical, Height 3 1/4 in, Width 2 in, Depth 1 5/8 in, Temp. Control Range 60 Degrees to 90 Degrees F, Air Consumption 19 scim, Throttling Range 2 Degrees to 10 Degrees F

Item Pneumatic Thermostat
Action Type - Pneumatic Thermostats Direct Acting
No. of Pipes 2 Pipe
Thermostat Application Heating
Temperature Output Settings Single Temperature
Air Connections 1/8 in
Temp. Control Range 60 Degrees to 90 Degrees F
Element Type Bi-Metal
Single Temp. / Dual Temp. Single Temperature
1 Pipe / 2 Pipe 2 Pipe
Air Consumption 0.01 scfm
Heating / Cooling Heating
Reverse Acting / Direct Acting Direct Acting
Max. Air Pressure 25 psi
Max. Ambient Temp. 100 Degrees F
Mounting Style Vertical
Throttling Range 2 to 10F
Action Type Direct Acting
Number of Pipes 2
Maximum Air Pressure 25 psig
Action Direct
Maximum Control Temperature 90 Degrees F
Temperature Control Range 60 Degrees to 90 Degrees F
Mounting Direction Vertical
Mounting Direction/Includes Cover Vertical, No
Manual Indexing Switch No
Thermostat Action Direct
Air Flow Output High Volume
Temperature Settings Single Temperature
Temperature Scale Fahrenheit
Number of Dials Single
Number of Pipes/Air Flow Output 2 Pipes, High Volume
Minimum Control Temperature 59 Degrees F
Compatible System Type Pneumatic Valves and Damper Actuators
Product Type Pneumatic Thermostat
Package Quantity 1
