| Voltage |
20/30VAC |
| Stages Heat |
1 |
| Mounting Type |

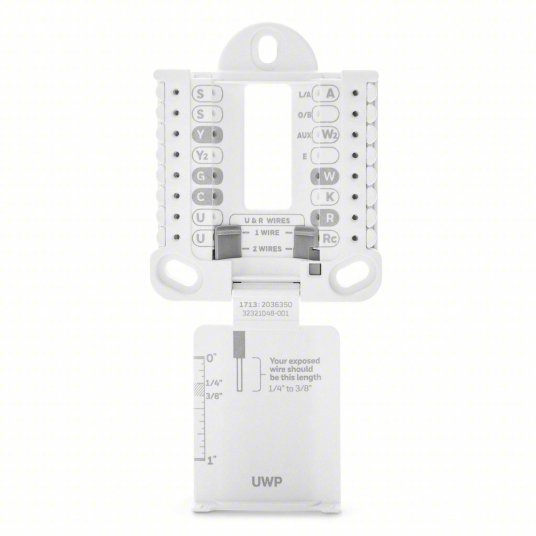

UWP Mounting System |
| Mounting Location |
Wall |
| Color |
White |
| Control Range |
Heat 40 Degrees F to 90 Degrees F; Cool 50 Degrees F to 99 Degrees F |
| System Switching |
Auto-Heat-Cool-Off |
| Stages Cool |
1 |
| Dual Transformer Compatible |
No |
| Power Method |
Hardwired/Battery |
| 750mV Compatible |
No |
| Programs per Week |
7, 5-2, 5-1-1 |
| Temperature Limiting |
No |
| Humidification Control |
No |
| Temporary Program Override |
Yes |
| Fan Switching |
Yes |
| Features |
Programmable, Universal Mounting |
| Key Pad Lockout |
No |
| WiFi Capability |
No |
| Dehumidification Control |
No |
| Automatic Changeover |
Yes |
| Temp. Settings per Day |
0, 1, 2, 4 |
| Low Battery Indicator |
Yes |
| Display Type |
Backlit |
| For Use With |
Gas, Oil or Electric Heat with A/C, Warm Air, Hot Water, High-Efficiency Furnace, Heat Pumps, Steam, Gravity |
| Includes |
Universal Wall Plate Mounting System, Mounting Hardware, J Box Adapter, Decorative Cover Plate, Installation Instructions and User Guide |
| Batteries Included |
Yes |
| Programmable Fan |
Yes |
| Temporary Temperature Hold |
Yes |
| Terminal Designations |
RC, R, C, W, W2, AUX, Y, Y2, O/B, G, K, E, U, U, L/A, S, S |
| Display Color |
Blue |
| Filter Indicator |
No |
| Battery Backup |
Yes |
| Stages |
1H/1C Conventional, 1H/1C Heat Pump |
| Control Type |
Push Button |
| System Settings |
Auto-Cool-Heat-Off |
| Number of Cooling Stages - Conventional System |
1 |
| Mounting Direction/Shape |
Square |
| Operating Humidity Range |
5% to 90% RH |
| Shape |
Square |
| Maximum Operating Humidity |
90 % |
| Millivolt Compatible |
No |
| Temperature Readout |
Yes |
| Operating Temperature Range |
32 Degrees to 120 Degrees F |
| Temperature Differential |
1 Degrees F |
| Number of Heating Stages - Heat Pump System |
1 |
| Application/Stages |
Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump |
| Temperature Scale |
Fahrenheit/Celsius |
| Minimum Control Temperature |
40 Degrees F |
| Number of Heating Stages - Conventional System |
1 |
| Maximum Operating Temperature |
120 Degrees F |
| Includes Batteries |
Yes |
| Minimum Operating Temperature |
32 Degrees F |
| Programming Capability |
5-1-1, 5-2, 7 Day |
| System/Fan Settings |
Auto-Cool-Heat-Off/Auto-On |
| Mounting Direction |
Horizontal |
| Housing Color |
White |
| Backlit Screen |
Yes |
| Backlit Screen Color |
Blue |
| Contact Rating |
20/30V AC |
| Number of Cooling Stages - Heat Pump System |
1 |
| Filter Change Reminder |
No |
| Includes Positive Off |
Yes |
| Number of Zones |
1 |
| Fan Settings |
Auto-On |
| Thermostat Type |
Low Voltage |
| Temperature Control Range |
40 Degrees to 99 Degrees F |
| Changeover Type |
Automatic |
| Compatible System Type |
Gas Forced Air Furnaces, Heat Pump without Aux, Hydronic Systems, Electric Forced Air Furnaces |
| Temperature settings per day |
0, 1, 2, 4 |
| Frequency |
50 Hz, 60 Hz |
| Application |
Heat and Cool |
| Electrical Connection Type |
Hardwired |
| Maximum Control Temperature |
99 Degrees F |
| Minimum Operating Humidity |
5 % |
