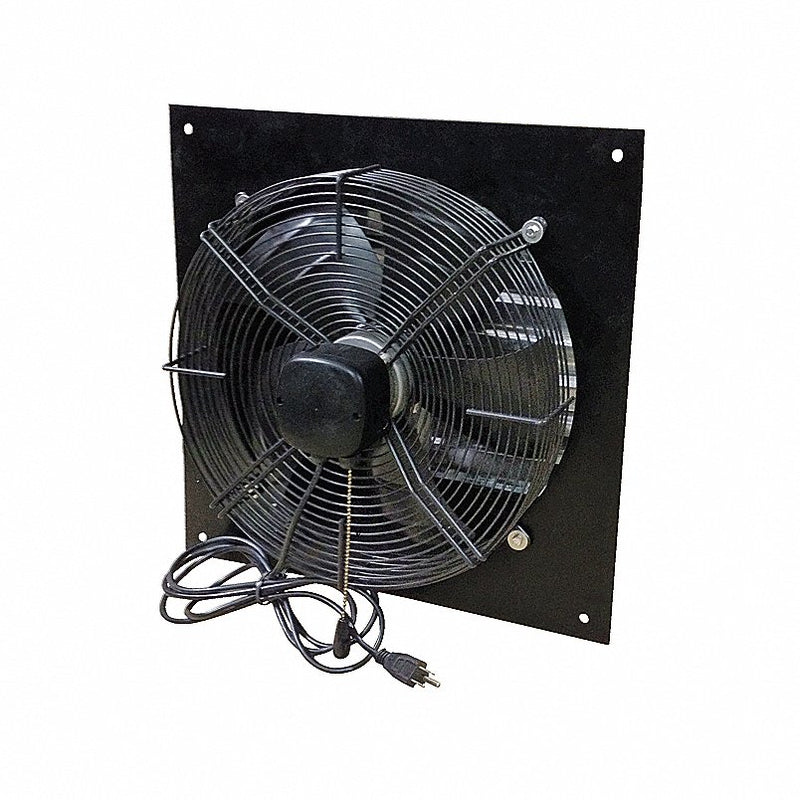

Canarm XFS12 Shutter Mount Exhaust Fan, 12", 3 Speed, 1100/900/800 cfm

Canarm XFS12 Shutter Mount Exhaust Fan, 12", 3 Speed, 1100/900/800 cfm

UPC: 062345353821 | Harmonization / Schedule B : 8414.59.6095

Country of Origin: China | Shipping Weight: 18.2 lbs

$381.41 - $381.41
$381.41
$381.41 - $381.41
$381.41

Shutter Mount Exhaust Fan, Assembled Assembled, Blade Diameter 12 in, Blade Material Steel, Control Type Pull Chain, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 1,100 cfm, For Cut-Out Height 14 in, For Cut-Out Width 14 in, For Maximum Wall Thickness 5 in, For Minimum Wall Thickness 5 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Powder Coated, Guard Material Steel, Guard Type Intake, Housing Material Steel

Exhaust/Supply Fan Item Exhaust Fan
Number of Speeds 3
Fan Voltage 115V AC
CFM @ 0.000-In. SP 1100/900/800
Exhaust/Supply Fan Motor HP 1/12 hp
Square Opening Required 14 in
Standards ETL
Thermal Protection yes
Frame Material Steel
Frame Finish Black Powder Coated
Max. Ambient Temp. 40 Degrees C
Item Shutter Mount Exhaust Fan
Number of Blades 5
Guard Material Steel
Speed Control Item Number CN5041
Full Load Amps 0.8/0.8/0.7
Hz 60
Wire Guard Finish Powder Coated
Motor Insulation Class A
Motor Enclosure Totally Enclosed Air Over
Motor Type Outside Rotor Motor
Voltage 115V
Phase 1
Drive Package Included No
Includes 9 ft Power Cord with 115V 3-Prong Plug, Aluminum Shutters, Pull Chain Switch, Wire Guard
Blade Material Steel
Bearing Type Sealed Ball
Nameplate Voltage 115V AC
Noise Level @ 0.100 in SP @ 5 ft 8 sones
Supply Airflow @ 0.000 in SP 1,100 cfm
Vent Design Ductless
Ventilation Type Exhaust
Exhaust Airflow @ 0.100 in SP 1,100 cfm
For Maximum Wall Thickness 5 in
Exhaust Airflow @ 0.125 in SP 1,100 cfm
Noise Level @ 0.000 in SP @ 5 ft 8 sones
Guard Type Intake
Includes Motor Yes
Housing Material Steel
Wattage 92 W
Guard Finish Powder Coated
Maximum Exhaust Airflow @ 0.000 in SP 0 to 2000 cfm
For Minimum Wall Thickness 5 in
Frequency 60 Hz
Number of Fans 1
Maximum Noise Level 8 sones
Full Load Current 0.8 A
Exhaust Airflow @ 0.000 in SP 1,100 cfm
Fan Style Shutter-Mounted
Speed Controllable Yes
Maximum Noise Level @ 0.000 in SP @ 5 ft 7.1 to 8.0 sones
Nominal Voltage 115V AC
Maximum Airflow 1,100 cfm
Control Type Pull Chain
Includes Grill No
Assembled Assembled
Drive Type Direct Drive
Motor Horsepower 1/12 hp
Maximum Ambient Operating Temperature 194 Degrees F
Motor Enclosure Design Totally Enclosed Air-Over (TEAO)
Includes Dehumidistat No
Duct Shape Not Applicable
Electrical Connection Plug-In
Housing Finish Powder-Coated
Motor Speed 1,600 RPM
Method of Construction Stamped
Package Quantity 1
