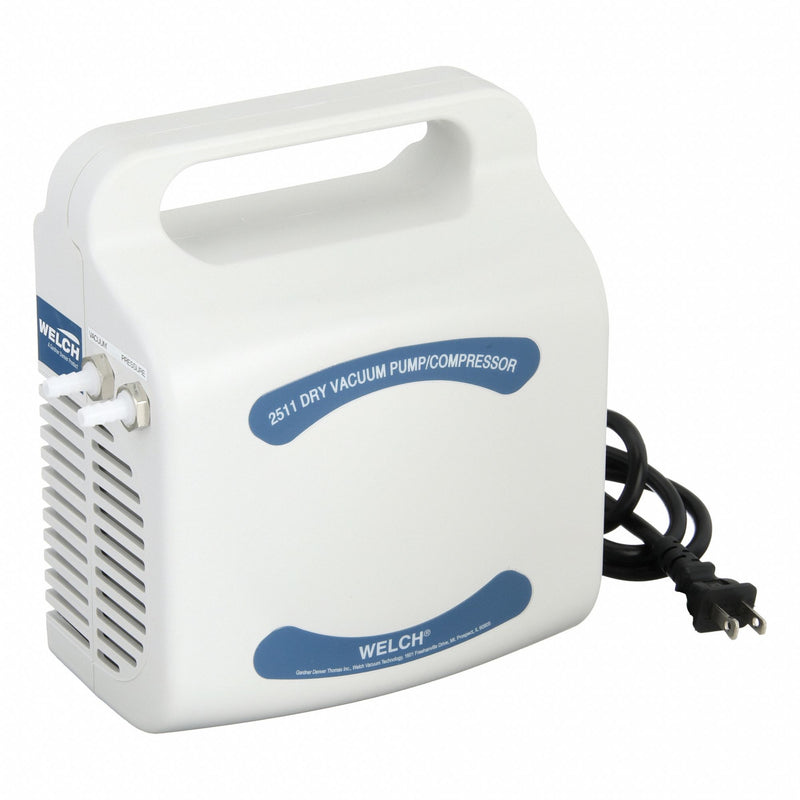

Welch 2511B-01 Piston Air Compressor/Vacuum Pump 0.033 HP

Welch 2511B-01 Piston Air Compressor/Vacuum Pump, 0.033 HP, 1 Phase, 115V AC, 33 psi, Tankless WOB-L

UPC: | Harmonization / Schedule B : 8414.80.1640

Country of Origin: United States | Shipping Weight: 5.59 lbs

$740.19 - $740.19
$740.19
$740.19 - $740.19
$740.19

Piston Air Compressor/Vacuum Pump, Lubrication Type Oil Free, Number of Cylinders 2, Output Power 0.033 hp, Phase Single, Voltage 115V AC, Maximum Continuous Pressure 33 psi, Maximum Intermittent Pressure 33 psi, Maximum Vacuum 21.3 in Hg, Free Air Flow Rate 0.39 cfm, Maximum Speed 2,900 RPM, Inlet Size 3/16 in, Inlet Type NPT, Outlet Size 3/16 in, Outlet Type NPT, Outlet Gender Female.

Pump Type WOB-L Piston
Piston Type WOB-L
Lubrication Type Oil Free
Number of Cylinders 2
Cylinder Material PPS
HP 33/1000 hp (0.033 hp)
Output Power 0.033 hp
Phase Single
Voltage 115V AC
Frequency 60 Hz
Full Load Amps 1.6 A
Motor Type Shaded Pole
Electrical Connection Cord With Plugs
Power Source Corded Electric
Maximum Continuous Pressure 33 psi
Maximum Intermittent Pressure 33 psi
Maximum Vacuum 21.3 in Hg
Free Air Flow Rate 0.39 cfm
Maximum Speed 2,900 RPM
Inlet Size 3/16 in NPT
Outlet Size 3/16 in NPT
Outlet Gender Female
Air Tank Style Tankless
Thermal Protection Yes
Sound Level 52 dBA
Operating Temperature 40–104 °F
Overall L × W × H 7.609 × 4.5 × 7.5 in
Country of Origin United States
