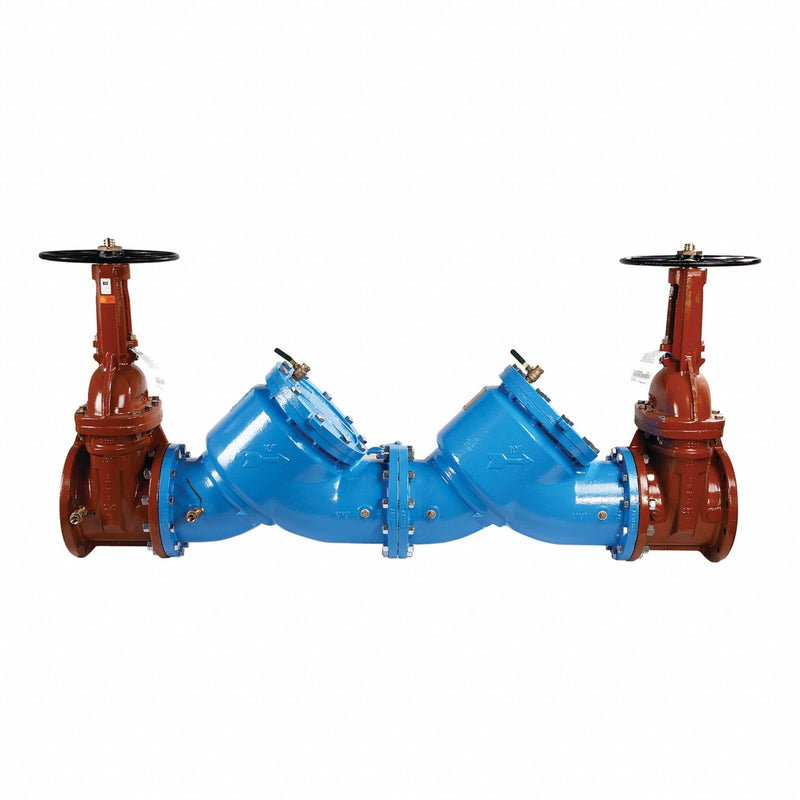

Watts LF709-OSY Double Check Valve Assembly, 8 in Pipe, Flange x Flange, Cast Iron, OSY Gate Shutoff, 175 psi

Watts LF709-OSY Double Check Valve Assembly, 8 in Pipe, Flange x Flange, Cast Iron, OSY Gate Shutoff, 175 psi

UPC: 098268646832 | Harmonization / Schedule B : 8481.30.1090

Country of Origin: United States | Shipping Weight: 1512 lbs

$34,531.99 - $34,531.99
$34,531.99
$34,531.99 - $34,531.99
$34,531.99

Double Check Valve Assembly, Series Watts 709, Size 8 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 20-1/4 in., Length 75 in., Height 37-3/4 in., Features OSY Shutoffs, Standards AWWA C510-92, IAPMO PA 31, USC Manual for Cross Connection Control 8th Edition, Compliance ASSE 1015, UPC, CSA B64.5, UL Classified, FM Approved, USC, Lead Free

Body Material Cast iron
Temp. Range 33 Degrees to 110 Degrees F
Series Watts 709
Standards ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, FM, IAPMO PA31, NSF, UPC, USC Manual
Features OSY Shutoffs
Max. Temp. 110 Degrees F
Max. Pressure 175 psi
Compliance ASSE 1015, CSA B64.5, FM Approved, Lead Free, UL Classified, UPC, USC
Connection Flanged Joint
Manufacturer Warranty 1 yr
Connection Type - Side 1 Flange
Mounting Orientation Horizontal, Vertical
Operating Temperature - Maximum 110 Degrees F
For Media Water
Includes Flow Meter No Flow Meter
Backflow Preventer Type Double Check Assembly (DC)
Seat Material Stainless Steel
Flow 2,500 gpm
Operating Temperature - Minimum 33 Degrees F
Includes Freeze Sensor No Freeze Sensor
Maximum Pressure - Operating 175 psi
Shut-Off Valve Included OSY Gate Valve
Connection Type - Side 2 Flange
Hazard Protection Level Low Health Hazard
Includes Strainer No Strainer
Valve Series LF709
