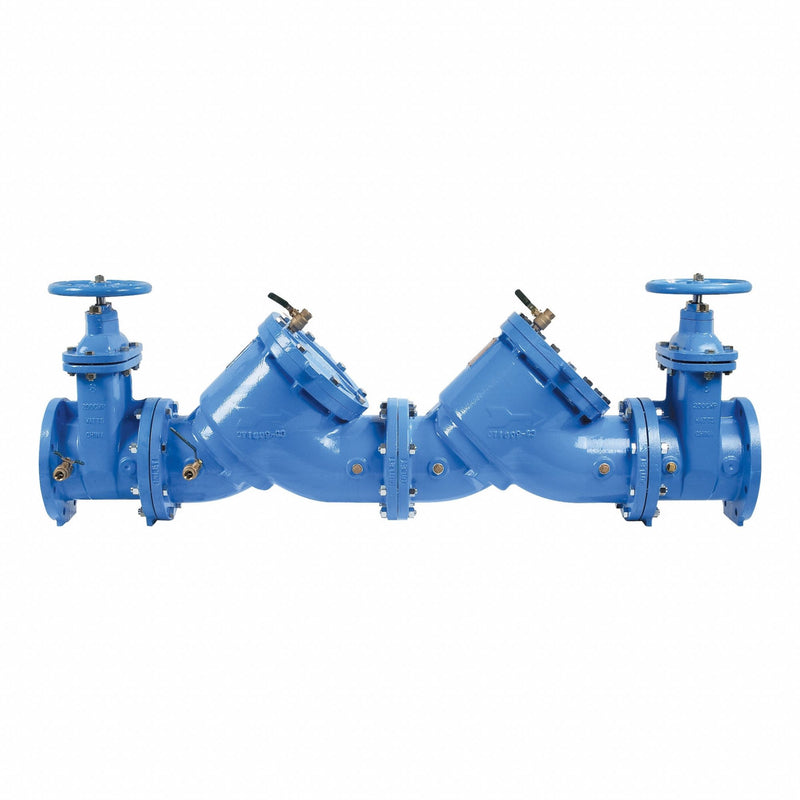

Watts LF709-NRS Double Check Valve Assembly, 4 in Pipe, Flange x Flange, Cast Iron, NRS Gate Shutoff, 175 psi

Watts LF709-NRS Double Check Valve Assembly, 4 in Pipe, Flange x Flange, Cast Iron, NRS Gate Shutoff, 175 psi

UPC: 098268646436 | Harmonization / Schedule B : 8481.30.1090

Country of Origin: United States | Shipping Weight: 421 lbs

$13,429.02 - $13,429.02
$13,429.02
$13,429.02 - $13,429.02
$13,429.02

Double Check Valve Assembly, Series Watts 709, Size 4 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 12 in., Length 52-3/8 in., Height 12-3/16 in., Features NRS Shutoffs, Standards AWWA C510-92, IAPMO PA 31, USC Manual for Cross Connection Control 8th Edition, Compliance ASSE 1015, UPC, CSA B64.5, UL Classified, FM Approved, USC, Lead Free

Body Material Cast iron
Temp. Range 33 Degrees to 110 Degrees F
Connection Flanged Joint
Max. Pressure 175 psi
Series Watts 709
Standards ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, IAPMO PA31, NSF, UPC, USC Manual
Features NRS Shutoffs
Compliance ASSE 1015, CSA B64.5, FM Approved, Lead Free, UL Classified, UPC, USC
Max. Temp. 110 Degrees F
Flow 600 gpm
Seat Material Stainless Steel
Operating Temperature - Maximum 110 Degrees F
Hazard Protection Level Low Health Hazard
Includes Strainer No Strainer
Includes Freeze Sensor No Freeze Sensor
Operating Temperature - Minimum 33 Degrees F
Shut-Off Valve Included NRS Gate Valve
Includes Flow Meter No Flow Meter
For Media Water
Mounting Orientation Horizontal, Vertical
Backflow Preventer Type Double Check Assembly (DC)
Maximum Pressure - Operating 175 psi
Connection Type - Side 2 Flange
Manufacturer Warranty 1 yr
Connection Type - Side 1 Flange
Valve Series LF709
